SO1316

Features: • 1.6mm(L)×0.8mm small size surface mount type• Thin package of 0.55mm(H) thickness• Transparent clear lens optic• Low power consumption type chip LEDApplication• LCD backlighting• Keypad backlighting• Symbol backlighting• Front panel indic...

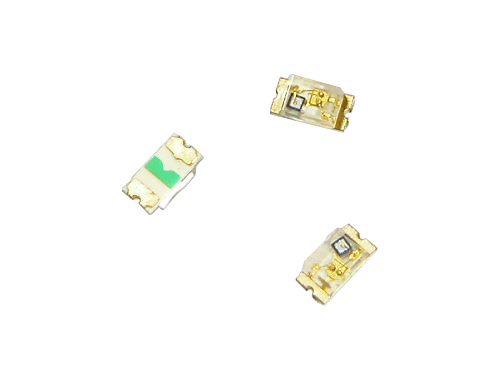

product image

SO1316 Picture
See larger image
SeekIC No. : 004499994 Detail

SO1316: Features: • 1.6mm(L)×0.8mm small size surface mount type• Thin package of 0.55mm(H) thickness• Transparent clear lens optic• Low power consumption type chip LEDApplication...

SO1316 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SO1316
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1.6mm(L)×0.8mm small size surface mount type
• Thin package of 0.55mm(H) thickness
• Transparent clear lens optic
• Low power consumption type chip LED




Application

• LCD backlighting
• Keypad backlighting
• Symbol backlighting
• Front panel indicator lamp




Pinout






Specifications

Characteristic Symbol Ratings Unit
Power Dissipation PD 70 mW
Forward Current IF 25 mA
*1Peak Forward Current IFP 50 mA
Reverse Voltage VR 4 V
Operating Temperature Topr -25∼80
Storage Temperature Tstg -30∼100
*2Soldering Temperature Tsol 240 for 5 seconds





Description

SO1316 are used as a small size surface mounted type for a key pad back light of mobile phone, and it also used in LCD backlight of Electric home appliances. Low power consumtion type chip LEDs are usefully applied for a wide range of backlight unit of Mobile parts, etcs.
