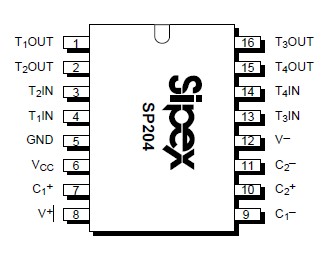

SP204

The SP200 Series multichannel RS-232 line transceivers provide a variety of configurations to fit most communication needs, especially those applications where ±12V is not available.All models in this Series feature lowpower CMOS construction and Sipex proprietary onboard charge pump circuitry to generate the ±10V RS-232 voltage levels. The ability to use 0.1µF charge pump capacitors saves board space and reduces circuit cost. Different models within the Series provide different driver/receiver combinations to match any application requirement.

The SP200, SP205, SP206, SP207B, SP211and SP213 models feature a lowpower shutdown mode, which reduces power supply drain to 1µA. The WakeUp function keeps the receiv-ers active in the shutdown mode, unless disabled by the EN pin. Models with a "B" suffix are equipped with the WakeUp function.

Models in the Series are available in 28pin SO(wide) and SSOP (shrink) small outline packages.Devices can be specified for commercial (0°C to +70°C) and industrial/extended (40°C to +85°C) operating temperatures.
