SP213EH

As in the original RS-232 multi-channel products, the SP207EH Series high speed multi-channel RS-232 line transceivers provide a variety of configurations to fit most designs,especially high speed applications where +12V is not available. The SP207EH Series is a superior high speed drop-in replacement to our
previous versions as well as popular industry standards.

All devices in this series feature low-power CMOS construction and Sipex's proprietary on-board charge pump circuitry to generate the +10V RS-232 voltage levels. The ability to use 0.1F charge pump capacitors saves board space and reduces production costs.The devices in this series provide different driver/receiver combinations to match any application requirement.

The SP211EH and SP213EH models feature a lowpower shutdown mode, which reduces power supply drain to 1A. The SP213EH includes a Wake-Up function which keeps two receivers active in the shutdown mode, unless disabled by the EN pin.

The family is available in 28pin SO (wide) and SSOP (shrink) small outline packages. Devices can be specified for commercial (0°C to +70°C)and industrial/extended (40°C to +85°C) operating temperatures.

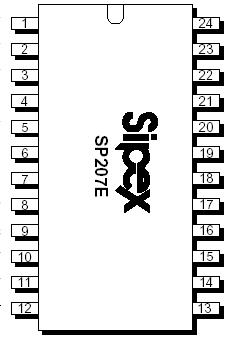

The SP207EH/208EH/211EH/SP213EH devices are high speed enhanced multi-channel RS-232 line transceivers with improved electrical performance. The SP207EH/208EH/211EH/213EH series is a superior drop-in replacement to our previous versions as well as popular industry standards. All devices feature low-power CMOS construction and the Sipex-patented (5,306,954) on-board charge pump circuitry that generates the +10V RS-232 voltage levels using 0.1mF charge pump capacitors. The SP211E and SP213EH devices feature a low-power shutdown mode, which reduces power supply drain to 1mA. Enhancements to this series include a higher transmission rate of 500Kbps, a lower power supply current at 3mA typical (no load), and superior ESD performance. The ESD tolerance has been improved for this series to over +15kV for both Human Body Model and IEC1000-4-2 Air Discharge test methods.
