Product Details

Description

Features:

Fast Rise Time, Low DCR
High Bandwidth 0.35 tr
Low Distortion LC Network
Standard Impedances: 50 - 75 - 100 - 200
Stable Delay vs. Temperature: 100 ppm/
Operating Temperature Range -55 to +125

Pinout

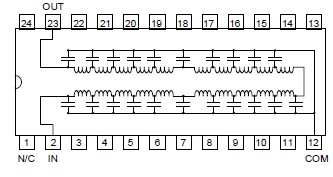

Connection Diagram

Specifications

Pulse Overshoot (Pos) .................................... 5% to 10%, typical
Pulse Distortion (S) ...................................................... 3% typical
Working Voltage ............................................. 25 VDC maximum
Dielectric Strength .......................................... 100VDC minimum
Insulation Resistance......................... 1,000 MW min. @ 100VDC
Temperature Coefficient ................................. 70 ppm/, typical
Bandwidth (fC) ....................................................... 0.35/tr approx.
Operating Temperature Range ............................ -55to +125
Storage Temperature Range ............................... -65 to +150
