Purchase SP312E, In-stock SP312E From SeekIC.
Part Number: SP312E
Description: The SP202E/232E/233E/310E/312E devices are a family of line driver and receiver pairs that meet the sp...
- Table of contents:
SP312E
-
Suppliers
DataSheet
General Description
SP312E General Description
The SP202E/232E/233E/310E/312E devices are a family of line driver and receiver pairs that meet the specifications of RS-232 and V.28 serial protocols with enhanced ESD performance.The ESD tolerance has been improved on these devices to over ±15KV for both Human Body Model and IEC1000-4-2 Air Discharge Method. These devices are pin-to-pin compatible with Sipex's SP232A/233A/310A/312A devices as well as popular industry standards. As with the initial versions, the SP202E/232E/233E/310E/312E devices feature at least 120Kbps data rate under load, 0.1µF charge pump capacitors, and overall ruggedness for commercial applications.This family also features Sipex's BiCMOS design allowing low power operation without sacrificing performance. The series is available in plastic and ceramic DIP and SOIC packages operating over the commercial, industrial and military temperature ranges.
SP312E Maximum Ratings
Vcc ..................................................................................................................... +6V
V+............................................................................................. (Vcc-0.3V) to +11.0V
V- ................................................................................................................... -11.0V
Input Voltages
TIN .............................................................................................. -0.3 to (Vcc +0.3V)
........................................................................................................................ ±15V
Output Voltages
TOUT .................................................................................. (V+, +0.3V) to (V-, -0.3V)
ROUT
................................................................................................... -0.3V to (Vcc +0.3V)
Short Circuit Duration
TOUT ....................................................................................................... Continuous
Power Dissipation
CERDIP ......................................................................................................... 675mW
(derate 9.5mW/°C above +70°C)
Plastic DIP .................................................................................................... 375mW
(derate 7mW/°C above +70°C)
Small Outline ................................................................................................ 375mW
(derate 7mW/°C above +70°C)
V+............................................................................................. (Vcc-0.3V) to +11.0V
V- ................................................................................................................... -11.0V
Input Voltages
TIN .............................................................................................. -0.3 to (Vcc +0.3V)
........................................................................................................................ ±15V
Output Voltages
TOUT .................................................................................. (V+, +0.3V) to (V-, -0.3V)
ROUT
................................................................................................... -0.3V to (Vcc +0.3V)
Short Circuit Duration
TOUT ....................................................................................................... Continuous
Power Dissipation
CERDIP ......................................................................................................... 675mW
(derate 9.5mW/°C above +70°C)
Plastic DIP .................................................................................................... 375mW
(derate 7mW/°C above +70°C)
Small Outline ................................................................................................ 375mW
(derate 7mW/°C above +70°C)
SP312E Features
The SP202E/232E/233E/310E/312E devices are a family of line driver and receiver pairs that meet the specifications of RS-232 and V.28 serial protocols with enhanced ESD performance.The ESD tolerance has been improved on these devices to over ±15KV for both Human Body Model and IEC1000-4-2 Air Discharge Method. These devices are pin-to-pin compatible with Sipex's 232A/233A/310A/312A devices as well as popular industry standards.As with the initial versions, the SP202E/232E/233E/310E/312E devices feature10V/µs slew rate, 120Kbps data rate under load, 0.1µF charge pump capacitors, overall ruggedness for commercial applications, and increased drive current for longer and more flexible cable configurations. This family also features Sipex's BiCMOS design allowing low power operation without sacrificing performance.
The SP202E/232E/233E/310E/312E devices have internal charge pump voltage converters which allow them to operate from a single +5V supply. The charge pumps will operate with polarized or non-polarized capacitors ranging from 0.1 to 10 µF and will generate the ±10V needed to generate the RS-232 output levels.Both meet all EIA RS-232 and ITU V.28 specifications.
SP312E Connection Diagram
SP312E
PDF/DataSheet Download
- Datasheet: SP312E
- File Size: 129346 KB
- Manufacturer:
- Click here to Download
- ·SP30
- 12-Bit, 12MHz CCD/CIS SIGNAL PROCESSOR
- 12-Bit, 12MHz CCD/CIS SIGNAL PROCESSOR
- 204057 KB
- ·SP300S
- Voltage Multipliers Inc.
- 15,000 V - 30,000 V Rectifier Stacks 0.5 A Forward Current 3000 ns Recovery Time
- 86586 KB
- ·SP301
- BURR-BROWN [Burr-Brown Corporation]
- 12-Bit, 12MHz CCD/CIS SIGNAL PROCESSOR
- 204057 KB
- ·SP304
- SIPEX [Sipex Corporation]
- RS-232/RS-422 Line Drivers/Receivers
- 146553 KB
- ·SP304CS
- SIPEX [Sipex Corporation]
- RS-232/RS-422 Line Drivers/Receivers
- 146553 KB
- ·SP304CT
- SIPEX [Sipex Corporation]
- RS-232/RS-422 Line Drivers/Receivers
- 146553 KB
- ·SP304ES
- SIPEX [Sipex Corporation]
- RS-232/RS-422 Line Drivers/Receivers
- 146553 KB
- ·SP304ET
- SIPEX [Sipex Corporation]
- RS-232/RS-422 Line Drivers/Receivers
- 146553 KB
SP312E Relative Products
SP312A
The Sipex SP231A, SP232A and SP233A are enhanced versions of the Sipex SP231, SP232 and SP233 RS-232 line drivers/receivers. They are pin-for-pin replacements for these earlier versions and will operate in their sockets. Performance enhancements include 10V/...
SP310E
The SP202E/232E/233E/310E/312E devices are a family of line driver and receiver pairs that meet the specifications of RS-232 and V.28 serial protocols with enhanced ESD performance.The ESD tolerance has been improved on these devices to over ±15KV for both H...
SP310A
The Sipex SP231A, SP232A and SP233A are enhanced versions of the Sipex SP231, SP232 and SP233 RS-232 line drivers/receivers. They are pin-for-pin replacements for these earlier versions and will operate in their sockets. Performance enhancements include 10V/...

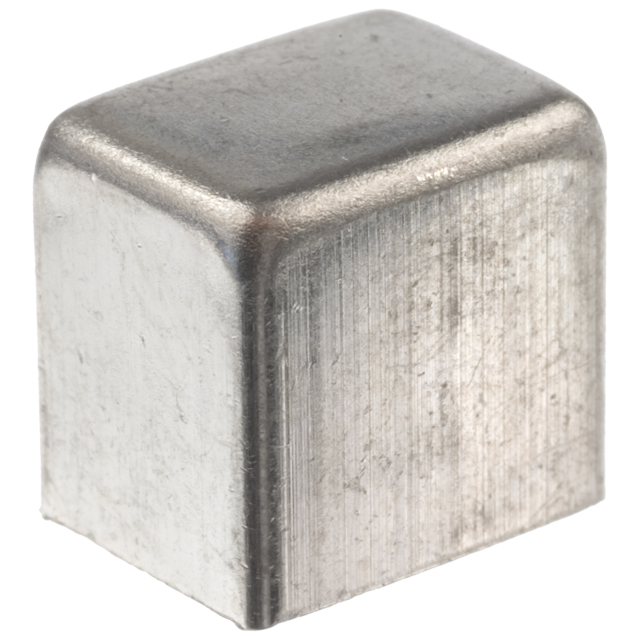

SP-310
