Part Number: SP320
Description: The SP320 is a complete V.35 interface transceiver offering 3 drivers and 3 receivers of V.35, and 4 d...
- Table of contents:
SP320
-
Suppliers
DataSheet
General Description
SP320 General Description
The SP320 is a complete V.35 interface transceiver offering 3 drivers and 3 receivers of V.35, and 4 drivers and 4 receivers of RS-232 (V.28). A Sipex patented charge pump allows +5V only low power operation. RS-232 drivers and receivers are specified to operate at 120kbps, all V.35 drivers and receivers operate up to 5Mbps.
SP320 Maximum Ratings
VCC...............................................................................+7V
Input Voltages
Logic....................................................-0.3V to (VCC+0.5V)
Drivers.................................................-0.3V to (VCC+0.5V)
Receivers..................................................±30V at 100mA
Output Voltages
Logic....................................................-0.3V to (VCC+0.5V)
Drivers.......................................................................±14V
Receivers.............................................-0.3V to (VCC+0.5V)
Storage Temperature..............................-65°C to +150°C
Power Dissipation................................................1500mW
Package Derating
ØJC.......................................................................16 •C/W
ØJA.......................................................................46 •C/W
Input Voltages
Logic....................................................-0.3V to (VCC+0.5V)
Drivers.................................................-0.3V to (VCC+0.5V)
Receivers..................................................±30V at 100mA
Output Voltages
Logic....................................................-0.3V to (VCC+0.5V)
Drivers.......................................................................±14V
Receivers.............................................-0.3V to (VCC+0.5V)
Storage Temperature..............................-65°C to +150°C
Power Dissipation................................................1500mW
Package Derating
ØJC.......................................................................16 •C/W
ØJA.......................................................................46 •C/W

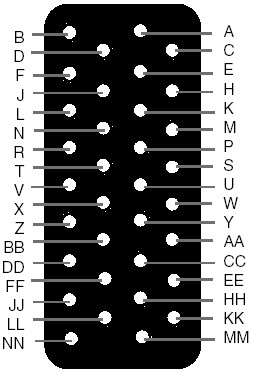

SP320 Connection Diagram
SP320
