General Description
SP37E760 General Description
The SMSC SP37E760 is a 3.3v PC 97-compliant I/O Controller. The SP37E760 utilizes SMSC's proven SuperCell technology and is optimized for embedded applications. The SP37E760 incorporates a 16-byte data FIFO, two 16C550 compatible UARTs and one Multi-Mode parallel port with ChiProtect circuitry plus EPP and ECP support. Both on-chip UARTs are compatible with the NS16C550.
The parallel port is compatible with IBM PC/AT architectures. The parallel port ChiProtect circuitry prevents damage caused by an attached powered printer when the SP37E760 is not powered.
The SP37E760 incorporates sophisticated power control circuitry (PCC). The PCC supports multiple low power down modes. The SP37E760 also features Software Configurable Logic (SCL) for ease of use. SCL allows programmable system configuration of key functions such as the parallel port, and UARTs.
SP37E760 Features
·3.3 Volt Operation
·Intelligent Auto Power Management
·16 Bit Address Qualification (Optional)
·Serial Ports
- Two High Speed NS16C550 Compatible UARTs with Send/Receive 16 Byte FIFOs
- Supports 230k and 460k Baud
- Programmable Baud Rate Generator
- Modem Control Circuitry
ISA Host Interface
·General Purpose Address Decoder
- 16-Byte Block Decode
·Multi-Mode Parallel Port with ChiProtect
- Standard Mode
- IBM PC/XT, PC/AT, and PS/2 Compatible
·Bi-directional Parallel Port
- Enhanced Parallel Port (EPP) Compatible
- EPP 1.7 and EPP 1.9 (IEEE 1284 Compliant)
- Enhanced Capabilities Port (ECP) Compatible (IEEE 1284 Compliant)
- Incorporates ChiProtect Circuitry or Protection Against Damage Due to Printer Power-On
- 192 Base I/O Address, 7 IRQ and 3 DMA Options
·100 Pin QFP and TQFP Packages
·Intelligent Auto Power Management
·16 Bit Address Qualification (Optional)
·Serial Ports
- Two High Speed NS16C550 Compatible UARTs with Send/Receive 16 Byte FIFOs
- Supports 230k and 460k Baud
- Programmable Baud Rate Generator
- Modem Control Circuitry
ISA Host Interface
·General Purpose Address Decoder
- 16-Byte Block Decode
·Multi-Mode Parallel Port with ChiProtect
- Standard Mode
- IBM PC/XT, PC/AT, and PS/2 Compatible
·Bi-directional Parallel Port
- Enhanced Parallel Port (EPP) Compatible
- EPP 1.7 and EPP 1.9 (IEEE 1284 Compliant)
- Enhanced Capabilities Port (ECP) Compatible (IEEE 1284 Compliant)
- Incorporates ChiProtect Circuitry or Protection Against Damage Due to Printer Power-On
- 192 Base I/O Address, 7 IRQ and 3 DMA Options
·100 Pin QFP and TQFP Packages

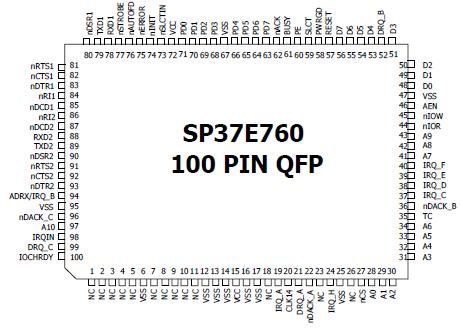

SP37E760 Connection Diagram
