Part Number: SP4412A



MFG: 23

Package Cooled: SIPEX

D/C: TSOP8

Description: The SP4412A is a high voltage output DC-AC converter that can operate from a 2.2V-3.6V power supply. T...


Urgent Purchase

SP4412A General Description


The SP4412A is a high voltage output DC-AC converter that can operate from a 2.2V-3.6V power supply. The SP4412A is capable of supplying up to 250 VPP signals, making it ideal for driving small electroluminescent lamps. The device features 10 nA (typical) standby current, for use in low power portable products. An inductor is used to generate the high voltage, and an external oscillator is needed as a clock source. The SP4412A is offered in an 8-pin narrow SOIC package or an 8-pin mSOIC package. For delivery in die form, please consult the factory.

SP4412A Maximum Ratings

VDD....................................................................................................5.0 V
Input Voltages/Currents
HON (pin 1).................................................................-0.5V to (VDD+0.5V)
COIL (pin 3)......................................................................................60mA
Lamp Outputs................................................................................250VPP
Storage Temperature.....................................................-65°C to +150°C
Power Dissipation Per Package
8-pin NSOIC (derate 6.14mW above +70)...............................500mW
8-pin mSOIC (derate 4.85mW above +70)..............................390mW

SP4412A Typical Application

 Watches
 Pagers
 Backlit LCD Displays

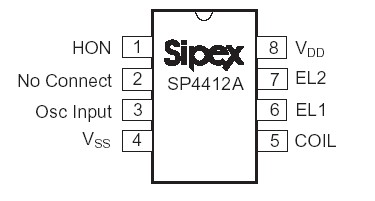

SP4412A Connection Diagram

SP4412A Connection Diagram

SP4412A datasheet

SP4412A
PDF/DataSheet Download
