General Description
SP507 General Description
The SP507 is a monolithic IC that supports seven (7) popular serial interface standards for DTE/DCE connectivity. The seven (7) drivers and seven (7) receivers transmit and receive signals at over 20Mbps. The SP507 requires no additional external components for compliant operation for all seven (7) modes of operation. All necessary termination is integrated within the SP507 and is switchable when V.35 drivers, V.35 receivers, and V.11 receivers are used. The SP507 can operate as either a DTE or DCE.
Additional features include a latch enable pin with the driver and receiver address decoder. Tri-state ability for the driver and receiver outputs is controlled by supplying a 3-bit word into the address decoder. Four (4) drivers and four (4) receivers in the SP507 include separate enable pins for added convenience.
SP507 Maximum Ratings
VCC............................................................................+7V
Input Voltages:
Logic..................................................-0.3V to (VCC+0.5V)
Drivers...............................................-0.3V to (VCC+0.5V)
Receivers...............................................................±15.5V
Output Voltages:
Logic..................................................-0.3V to (VCC+0.5V)
Drivers......................................................................±15V
Receivers...........................................-0.3V to (VCC+0.5V)
Storage Temperature.............................-65°C to +150°C
Power Dissipation per package
80-pin QFP (derate 18.3mW/°C above +70°C)...1500mW
Input Voltages:
Logic..................................................-0.3V to (VCC+0.5V)
Drivers...............................................-0.3V to (VCC+0.5V)
Receivers...............................................................±15.5V
Output Voltages:
Logic..................................................-0.3V to (VCC+0.5V)
Drivers......................................................................±15V
Receivers...........................................-0.3V to (VCC+0.5V)
Storage Temperature.............................-65°C to +150°C
Power Dissipation per package
80-pin QFP (derate 18.3mW/°C above +70°C)...1500mW

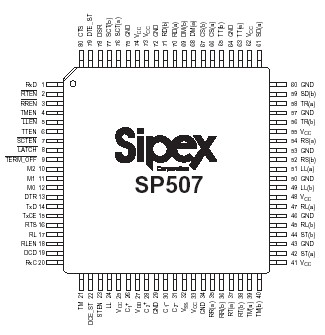

SP507 Connection Diagram
