SP5070
-
Suppliers
DataSheet
General Description
SP5070 Maximum Ratings
|
Parameter |
Pin |
Value |
Units | |
|
Min |
Max | |||
|
Supply voltage RF input voltage RF input DC offset Charge pump DC offset Charge pump disable Drive DC offset Crystal oscillator DC offset TEST outputs Storage temperature Junction temperature DP14 thermal resistance, chip-to-ambient DP14 thermal resistance, chip-to-case MP14 thermal resistance, chip-to-ambient MP14 thermal resistance, chip-to-case Power consumption at 5.5V |
1 2,3 2,3 8 11 7 9,10 13,14 - - - - - - - |
-0.3 - -0.3 -0.3 -0.7 -0.3 -0.3 -0.3 -55 - - - - - - |
7 2.5 VCC+0.3 VCC+0.3 VCC+0.3 VCC+0.3 VCC+0.3 VCC+0.3 150 +150 78 30 123 45 275 |
V V p-p V V V mA V V V V V V V °C °C |
SP5070 Features
Low Power Consumption (5V, 47mA typ.)
Prescaler and Preamplifier Included
Charge Pump Amplifier with Feedback Point
Charge Pump Disable Facility
Synthesises Frequencies up to 2.4GHz
Pin and Function Compatible with SP5060 and SP5062
Full ESD Protection*
Prescaler and Preamplifier Included
Charge Pump Amplifier with Feedback Point
Charge Pump Disable Facility
Synthesises Frequencies up to 2.4GHz
Pin and Function Compatible with SP5060 and SP5062
Full ESD Protection*
SP5070 Typical Application
Satellite TV
High IF Cable Tuning Systems
C-Band with Frequency Doubling Mixer
High IF Cable Tuning Systems
C-Band with Frequency Doubling Mixer

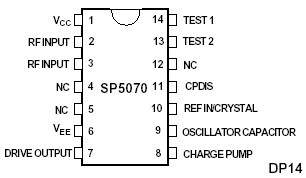

SP5070 Connection Diagram
SP5070
PDF/DataSheet Download
- Datasheet: SP5070
- File Size: 183916 KB
- Manufacturer: MITEL [Mitel Networks Corporation]
- Click here to Download
