SP524

PinoutSpecificationsVCC...........................................................+7VVDD.........................................................+12VVSS.........................................................12VInput VoltagesLogic...............................-0.5V to (VCC+0.5V)Drivers.............

product image

SP524 Picture
See larger image
SeekIC No. : 004500483 Detail

SP524: PinoutSpecificationsVCC...........................................................+7VVDD.........................................................+12VVSS.................................................

SP524 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP524
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

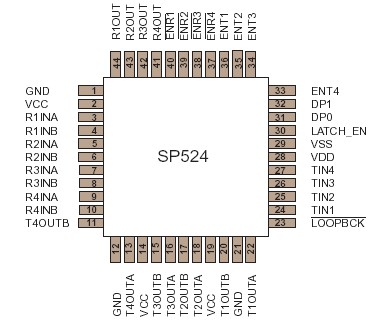

Connection Diagram


Specifications

VCC...........................................................+7V
VDD.........................................................+12V
VSS.........................................................12V
Input Voltages
Logic...............................-0.5V to (VCC+0.5V)
Drivers............................-0.5V to (VCC+0.5V)
Receivers................................±30V@100mA
Outputs Voltages
Logic...............................-0.5V to (VCC+0.5V)
Drivers...................................................+15V
Receivers........................-0.5V to (VCC+0.5V)
Storage Temperature..........-65°C to +150°C
Power Dissipation.............................2000mW


Description

The SP522/524 is a monolithic device that supports three serial interface standards for Wide Area Network Connectivity. The SP522/524 is ideally suited for multi-protocol designs that are cost and space sensitive. The SP522/524 is fabricated using a low power BiCMOS process technology. Two (2) drivers and two (2) receivers for the SP522 can be configured via software for any of the above interface modes at any time. The SP524 offers two (2) additional drivers and two (2) additional receivers.
