Features:

• Offers 4 to 8% efficiency improvement over Schottky Diodes (depend on drive configuration of the SR).
• Drives all logic level Power MOSFET.
• Prediction gate timing control.
• Minimum MOSFET body diode conduction.
• Operating frequency up to 650 KHz.
• Synchronize to transformer secondary voltage waveform.


Application

• Servers & workstations
• Storage area network power supplies
• Telecommunication converters
• Embedded systems
• Industrial & commercial systems using high current processors


Pinout

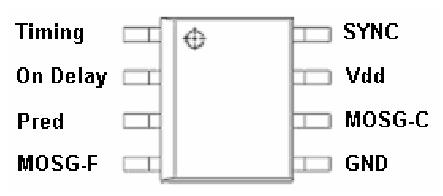

Connection Diagram






Specifications

Symbol
 Parameter Value Unit
Vdd DC Supply Voltage 7 V
VSYNC SYNC Voltage 7.5 V
IOUT Peak Source Current (Pulsed) 1 A
  Peak Sink Current (Pulsed) 1.5 A
PD Power Dissipation @ TA=85 (*) 0.25 W
TJ Operating Junction Temperature Range -40 to 150
TSTG Storage Temperature Range -40 to 150
TLEAD Lead Soldering Temperature for 5 sec. 260



Description

The fundamental of SP6002 synchronous rectifier (SR) driver IC is based on our U.S. patented methods that utilize the principle of "prediction" logic circuit. The IC deliberates previous cycle timing to control the SR in present cycle by "predictive" algorithm that makes adjustments to the turn-off time, in order to achieve maximum efficiency and avoid cross-conduction at the same time. It also maintains the MOSFET's body diode conduction at minimum level. The SP6002 is capable to adapt in almost all existing forward converters with few adjustments considered necessary.
