Part Number: SP6120B
Description: The SP6120B is a fixed frequency, voltage mode, synchronous PWM controller designed to work from a sin...
- Table of contents:
SP6120B
-
Suppliers
DataSheet
General Description
SP6120B General Description
The SP6120B is a fixed frequency, voltage mode, synchronous PWM controller designed to work from a single 5V or 3.3V input supply. Sipex's unique "AnyFETTM" Technology allows the SP6120B to be used for resolving a multitude of price/performance trade-offs. It is separated from the PWM controller market by being the first controller to offer precision, speed, flexibility, protection and efficiency over a wide range of operating conditions.
SP6120B Maximum Ratings
VCC ............................................................................ 7V
BST ........................................................................ 13.2V
BST-SWN .................................................................... 7V
SWN ................................................................ -1V to 7V
GH .................................................... -0.3V to BST +0.3V
GH-SWN ..................................................................... 7V
All Other Pins ................................... -0.3V to VCC +0.3V
Peak Output Current < 10µs
GH, GL ...................................................................... 2A
Operating Temperature Range
SP6120C ................................................. 0°C to +70°C
SP6120E .............................................. -40°C to +85°C
Junction Temperature, TJ ................................. +125°C
Storage Temperature Range ............. -65°C to +150°C
Power Dissipation
Lead Temperature (soldering 10 sec) .............. +300°C
ESD Rating ..................................................... 2kV HBM
BST ........................................................................ 13.2V
BST-SWN .................................................................... 7V
SWN ................................................................ -1V to 7V
GH .................................................... -0.3V to BST +0.3V
GH-SWN ..................................................................... 7V
All Other Pins ................................... -0.3V to VCC +0.3V
Peak Output Current < 10µs
GH, GL ...................................................................... 2A
Operating Temperature Range
SP6120C ................................................. 0°C to +70°C
SP6120E .............................................. -40°C to +85°C
Junction Temperature, TJ ................................. +125°C
Storage Temperature Range ............. -65°C to +150°C
Power Dissipation
Lead Temperature (soldering 10 sec) .............. +300°C
ESD Rating ..................................................... 2kV HBM
SP6120B Typical Application
DSP
Microprocessor Core
I/O & Logic
Industrial Control
Distributed Power
Low Voltage Power
Microprocessor Core
I/O & Logic
Industrial Control
Distributed Power
Low Voltage Power

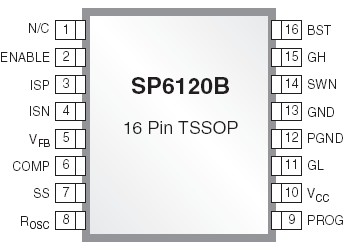

SP6120B Connection Diagram
SP6120B
PDF/DataSheet Download
- Datasheet: SP6120B
- File Size: 311497 KB
- Manufacturer: SIPEX [Sipex Corporation]
- Click here to Download
