SP6656

Features: 98% Efficiency PossibleSmall 3X3 10-Pin DFN PackageUltra-low 20A Quiescent Current625mA Inductor Peak Current LimitGuaranteed Minimum 400mA OutputCurrent2.7V to 5.5V Input Voltage RangeOutput Adjustable Down to 1.0V100% Duty Ratio Low DropoutOperation80A Light Load Quiescent Current inDr...

product image

SP6656 Picture
See larger image
SeekIC No. : 004500584 Detail

SP6656: Features: 98% Efficiency PossibleSmall 3X3 10-Pin DFN PackageUltra-low 20A Quiescent Current625mA Inductor Peak Current LimitGuaranteed Minimum 400mA OutputCurrent2.7V to 5.5V Input Voltage RangeOut...

SP6656 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP6656
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

98% Efficiency Possible
Small 3X3 10-Pin DFN Package
Ultra-low 20A Quiescent Current
625mA Inductor Peak Current Limit
Guaranteed Minimum 400mA Output
Current
2.7V to 5.5V Input Voltage Range
Output Adjustable Down to 1.0V
100% Duty Ratio Low Dropout
Operation
80A Light Load Quiescent Current in
Dropout
Output Voltage Logic Selection
Ideal for portable designs powered with
Li Ion battery




Application

Cell Phones
PDA's
DSC's
MP3 Players
USB Devices
Point of Use Power




Pinout

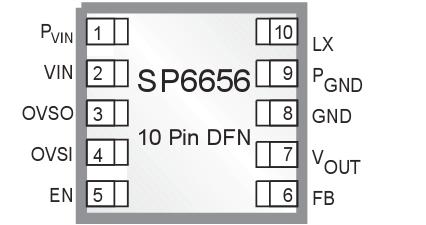

Connection Diagram




Specifications

PVIN ,VIN .................................................................................... 6V
All other pins ..................................................... -0.3V to VIN +0.3V
PVIN , PGND, LX current.............................................................. 2A
Storage Temperature .............................................. -65to 150
Operating Temperature ........................................... -40 to +85
Lead Temperature (Soldering, 10 sec)................................... 300

PVIN ,VIN .................................................................................... 6V
All other pins ..................................................... -0.3V to VIN +0.3V
PVIN , PGND, LX current.............................................................. 2A
Storage Temperature .............................................. -65to 150
Operating Temperature ........................................... -40 to +85
Lead Temperature (Soldering, 10 sec)................................... 300

Specifications
Iout(mA) 400
Vin MIN. (V) 2.7
Vin MAX. (V) 5.5
IQ (A) 20
Vout MIN. (V) 1
Vout MAX. (V) 5
Freq (kHz) PFM
Efficiency(%) 98
Comments PFM





Description

The SP6656 is a 400mA synchronous buck regulator that is ideal for portable applications that use a Li-Ion or 3 cell alkaline/NiCD/NiMH input. The SP6656's proprietary control loop, 20A light load quiescent current, and 0.3? power switches provide excellent efficiency across a wide range of output currents. As the input battery supply decreases towards the output voltage the SP6656 seamlessly transitions into 100% duty ratio operation further extending useful battery life. The SP6656 is protected against overload and short circuit conditions with a precise inductor peak current limit. Other features include externally programmable output voltage down to 1.0V, logic controlled output voltage selection, logic level shutdown control, and 140C over temperature shutdown.
