SP6680

Features: Ideal For Sim Card Applications InCellular Phones Low Profile, Inductorless Regulator Up To 96% Power Efficiency +2.7V to +6.3V Input Voltage Range 5.8V Output Voltage 60mA Output Current 75A Quiescent Current 4A Shutdown Current External 32.768kHz Clock Input Three Programmable Charge ...

product image

SP6680 Picture
See larger image
SeekIC No. : 004500588 Detail

SP6680: Features: Ideal For Sim Card Applications InCellular Phones Low Profile, Inductorless Regulator Up To 96% Power Efficiency +2.7V to +6.3V Input Voltage Range 5.8V Output Voltage 60mA Output Current...

SP6680 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP6680
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Ideal For Sim Card Applications InCellular Phones
Low Profile, Inductorless Regulator
Up To 96% Power Efficiency
+2.7V to +6.3V Input Voltage Range
5.8V Output Voltage
60mA Output Current
75A Quiescent Current
4A Shutdown Current
External 32.768kHz Clock Input
Three Programmable Charge PumpFrequencies:  8.192kHz, 32.768kHz,and 262.14kHz
Internal Oscillator At 16.7kHz, WhenCLK Pin Is Held High
Space Saving 10-Pin SOIC Package


Pinout

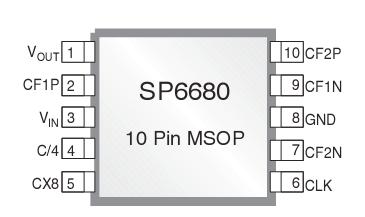

Connection Diagram


Specifications

VIN.........................................................-0.3V to +7.0V
VOUT .....................................................-0.3V to +7.0V
IOUT...................................................................100mA
Storage Temperature...........................-65 to +150
Power Dissipation Per Package
10-pin mSOIC
(derate 8.84mW/ above +70).....................720mW
Junction Temperature..........................................125


Description

The SP6680 Evaluation Board is designed to help the user evaluate the performance of the SP6680 for use as a single Li-Ion battery input to +5V output DC-DC Converter.  The SP6680 operates from 2.7V to 6.3V input, with the highest efficiency in the range 3.0V to 4.2V where the Li-Ion battery has the most energy.   The SP6680UEB evaluation board is a complete power supply circuit with +5V LDO Regulator to provide ease of use to evaluate system DC/DC Converter performance.

The evaluation board is a completely assembled and tested surface mount board whichprovides easy probe access points to all SP6680 Inputs and Outputs so that the user can quickly connect and measure electrical characteristics and waveforms.

The next two sections describe the SP6680 Board Layout and Using the SP6680 Evaluation Boards.  A table ofSP6680 Pin Assignments is also included with details oninput/output pin function.  A SP6680 Evaluation Board List of Materials table is providedwith some manufacturers part numbers to use as a reference.   Finally, a schematic anddrawings of the PC Layout are included as a design-in tool for the user of the SP6680.
