SP6690

Features: Miniature Package: 8 Pin DFN, 5 Pin TSOTor 5 Pin SOT-23 High Output Voltage: Up to 30V Optimized for Single Supply,2.7V - 4.2V Applications Operated Down to 1V High Efficiency: Greater Than 75% Low Quiescent Current: 20A Ultra Low Shutdown Current: 10nA Single Battery Cell Operation Pro...

product image

SP6690 Picture
See larger image
SeekIC No. : 004500595 Detail

SP6690: Features: Miniature Package: 8 Pin DFN, 5 Pin TSOTor 5 Pin SOT-23 High Output Voltage: Up to 30V Optimized for Single Supply,2.7V - 4.2V Applications Operated Down to 1V High Efficiency: Greater Th...

SP6690 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP6690
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Miniature Package: 8 Pin DFN, 5 Pin TSOTor 5 Pin SOT-23
High Output Voltage: Up to 30V
Optimized for Single Supply,2.7V - 4.2V Applications
Operated Down to 1V
High Efficiency: Greater Than 75%
Low Quiescent Current: 20A
Ultra Low Shutdown Current: 10nA
Single Battery Cell Operation
Programmable Output Voltage
1 switch (250mV at 250mA)




Application

White LED Driver
High Voltage Bias
Digital Cameras
Cell Phone
Battery Backup
Handheld Computers

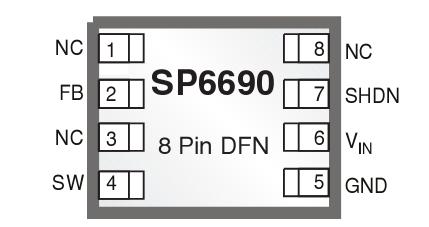

Pinout

Connection Diagram




Specifications

Specifications
App Backlight
CH 1
Iout(mA) 176
Vin MIN. (V) 1.0
Vin MAX. (V) 13.5
IQ (A) 20
Vout MIN. (V) 2
Vout MAX. (V) 30
Efficiency(%) 75


VIN .......................................................................15V
SW Voltage ..............................................-0.4 to 34V
FB Voltage......................................................... 2.5V
All other pins...................................-0.3 to VIN+ 0.3V
Current into FB ...............................................±1mA
TJMax ............................................................. 125
Operating Temperature Range ............ -40 to 85
Peak Output Current < 10us SW ...................500mA
Storage Temperature ...................... -65 to +150
Power Dissipation..........................................200mW
Lead Temperature (Soldering, 10 sec) ............ 300
ESD Rating................................................... 2kV HBM




Description

The SP6690 is a micro power boost regulator that is specifically designed for powering seriesconfiguration white LED. The part utilizes fixed off time architecture and consumes only 10nAquiescent current in shutdown. Low voltage operation, down to 1V, fully utilizes maximal batterylife. The SP6690 is offered in a 8 pin DFN, 5 pin TSOT or 5 pin SOT-23 package and enables theconstruction of a complete regulator occupying < 0.2 in2board space.
