SP706T

PinoutSpecificationsTerminal Voltage (with respect to GND):VCC........................................................-0.3V to +6.0VAll Other Inputs (Note 1).............-0.3V to (VCC +3.0V)Input Current:VCC....................................................................20mAGND...................

product image

SP706T Picture
See larger image
SeekIC No. : 004500626 Detail

SP706T: PinoutSpecificationsTerminal Voltage (with respect to GND):VCC........................................................-0.3V to +6.0VAll Other Inputs (Note 1).............-0.3V to (VCC +3.0V)Input Cu...

SP706T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP706T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

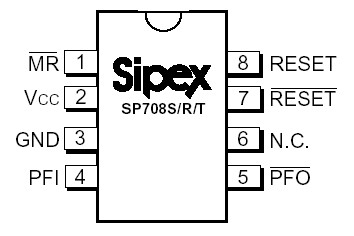

Connection Diagram




Specifications

Terminal Voltage (with respect to GND):
VCC........................................................-0.3V to +6.0V
All Other Inputs (Note 1).............-0.3V to (VCC +3.0V)
Input Current:
VCC....................................................................20mA
GND...................................................................20mA
Output Current (all outputs)..............................20mA
ESD Rating...........................................................2kV
Continuous Power Dissipation
Plastic DIP
(derate 9.09mW/ above +70)..................727mW
SO
(derate 5.88mW/ above +70)..................471mW
Mini SO
(derate 4.10mW/ above +70)..................330mW
Storage Temperature Range...........-65°C to +160°C
Lead Temperature (solding 10 sec)...............+300°C

Specifications
# ofChannels 1
IQ (A) 40
VccMIN.(V) 1
VccMAX.(V) 5.5
ResetThreshold(V) 3.08
ResetActive low
ResetAcc(mV) 75
ResetOutputType Other





Description

The SP706P/S/R/T, SP708R/S/T series SP706T is a family of microprocessor (µP) supervisory circuits that integrate myriad components involved in discrete solutions which monitor power-supply and battery, in µP, and digital systems. The SP706P/S/R/T, SP708R/S/T series SP706T will significantly improve system reliability and operational efficiency when compared to results obtained with discrete components. The features of the SP706P/S/R/T, SP708R/S/T  SP706T series include a watchdog timer, a µP reset, a Power Fail Comparator, and a manual-reset input. The SP706P/ S/R/T, SP708R/S/T series is ideal for +3.0V or +3.3V applications in automotive systems, computers, controllers, and intelligent instruments. The SP706P/S/R/T, SP708R/S/T SP706T series is an ideal solution for systems in which critical monitoring of the power supply to the µP and related digital components is demanded.
