SP7655

Features: 2.5V to 28V Step Down Achieved Using Dual Input Output Voltage down to 0.8V 8A Output Capability Built in Low RDSON Power Switches (15 mΩ typ) Highly Integrated Design, Minimal Components600 kHz Fixed Frequency Operation UVLO Detects Both VCC and VIN Over Temperature Protection Sh...

product image

SP7655 Picture
See larger image
SeekIC No. : 004500677 Detail

SP7655: Features: 2.5V to 28V Step Down Achieved Using Dual Input Output Voltage down to 0.8V 8A Output Capability Built in Low RDSON Power Switches (15 mΩ typ) Highly Integrated Design, Minimal Comp...

SP7655 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP7655
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

2.5V to 28V Step Down Achieved Using Dual Input
Output Voltage down to 0.8V
8A Output Capability
Built in Low RDSON Power Switches (15 mΩ typ)
Highly Integrated Design, Minimal Components
600 kHz Fixed Frequency Operation
UVLO Detects Both VCC and VIN
Over Temperature Protection
Short Circuit Protection with Auto-Restart
Wide BW Amp Allows Type II or III Compensation
Programmable Soft Start
Fast Transient Response
High Efficiency: Greater than 95% Possible
Asynchronous Start-Up into a Pre-Charged Output
Small 7mm x 4mm DFN Package

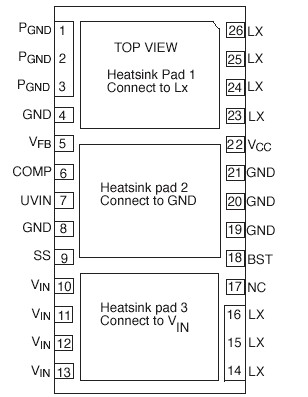

Pinout

Connection Diagram




Specifications

VCC .............................................................................................. 7V
VIN ............................................................................................. 30V
ILX ...............................................................................................10A
BST ............................................................................................. 35V
BST-SWN ......................................................................... -0.3V to 7V
SWN................................................................................. -1V to 30V
GH......................................................................... -0.3V to BST+0.3V
GH-SWN ....................................................................................... 7V
All other pins ....................................................... -0.3V to VCC+0.3V
Storage Temperature ............................................... -65°C to 150°C
Power Dissipation ..................................... Internally Limited via OTP
Lead Temperature (Soldering, 10 sec) ................................... 300°C
ESD Rating .......................................................................... 2kV HBM
Thermal Resistance ϑJC .......................................................... 5°C/W

Specifications
Iout(mA) 8000
Vin MIN. (V) 2.5
Vin MAX. (V) 28
IQ (A) 1500
Vout MIN. (V) 0.8
Vout MAX. (V) 27
Freq (kHz) 300
Efficiency(%) 95





Description

The SP7655 is a synchronous step-down switching regulator optimized for high efficiency. The part is designed to be especially attractive for dual supply, 12V or 24V distributed power systems step down with 5V used to power the controller. This lower VCC voltage minimizes power dissipation in the part and is used to drive the top switch. The SP7655 is designed to provide a fully integrated buck regulator solution using a fixed 300kHz frequency, PWM voltage mode architecture. Protection features include UVLO, thermal shutdown and output short circuit protection. The SP7655 is available in the space saving DFN package.
