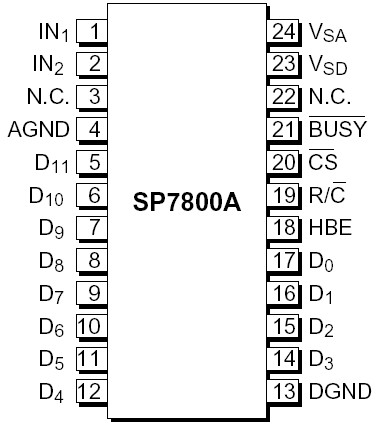

Connection Diagram

Specifications

V_S to Digital Common ............................................................... +7V
Pin 23 (V_SO) to Pin 24 (V_SA) .................................................. ±0.3V
Analog Common to Digital Common ...................................... ±0.3V
Control Inputs to Digital Common ...................... 0.3 to VS + 0.3 V
Analog Input Voltage ............................................................. ±20V
Maximum Junction Temperature ........................................... 160°C
Internal Power Dissipation ................................................. 750mW
Lead Temperature (soldering, 10s) .................................... +300°C
Thermal Resistance. ØJA:
Plastic DIP .......................................................................... 50°C/W
SOIC ............................................................................... 100°CC/W

Description

The SP7800A is a complete 12-bit sampling A/D converter using stateoftheart CMOS structures. It contains a complete 12bit successive approximation A/D converter with internal sample/hold, reference, clock, digital interface for microprocessor control, and threestate output drivers. AC and DC performance are completely specified. Two grades based on linearity and dynamic performance are available to provide the optimum price/performance fit in a wide range of applications.
