Part Number: SP8126B
Description: The SP8126B is a high-speed, differential output APC amplifier that integrates the photodiode and adju...
- Table of contents:
SP8126B
-
Suppliers
DataSheet
General Description
SP8126B General Description
The SP8126B is a high-speed, differential output APC amplifier that integrates the photodiode and adjustable gain block on one chip. Independent gain control allows individual adjustment for 780mn and 650nm wavelength operation, as found in CD/DVD optical storage drives. This allows the user to control the laser power of the system in high-speed DVDRW, DVDRAM and CDRW systems. The wide 2V output swing also allows better system performance, through improved dynamic range.
SP8126B Maximum Ratings
TJ(MAX) ...........................................................................120°C
VS(MAX) .............................................................................. 6V
VIN(MAX) ............................................................................. 6V
Power Supply Voltage
Continuous Power Dissipation (TAMB = 70°C)
COB (derate 13.3mW/°C above +70°C) ....................... 90mW
VS(MAX) .............................................................................. 6V
VIN(MAX) ............................................................................. 6V
Power Supply Voltage
Continuous Power Dissipation (TAMB = 70°C)
COB (derate 13.3mW/°C above +70°C) ....................... 90mW
SP8126B Features
Dual Wavelength
Slew Rate of 300V/µs
Fast Settling Time - 7ns
Gain Control
2V Output Swing
Low Offset Voltage: < 10mV
Low Offset Drift: < 20µV/°C
12dB External Gain Adjust Range
Slew Rate of 300V/µs
Fast Settling Time - 7ns
Gain Control
2V Output Swing
Low Offset Voltage: < 10mV
Low Offset Drift: < 20µV/°C
12dB External Gain Adjust Range
SP8126B Typical Application
DVDRW
DVDRAM
CDRW
DVDRAM
CDRW

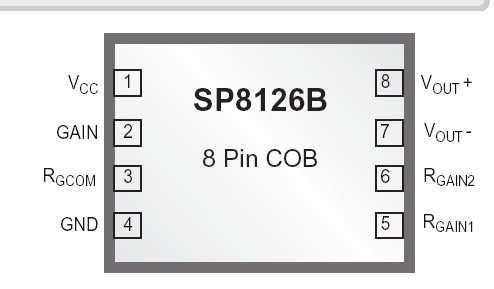

SP8126B Connection Diagram
SP8126B
PDF/DataSheet Download
- Datasheet: SP8126B
- File Size: 99485 KB
- Manufacturer: SIPEX [Sipex Corporation]
- Click here to Download
