Part Number: SP8127
Description: The SP8127 is a high-speed, differential output APC amplifier that integrates the photodiode and adjus...
- Table of contents:
SP8127
-
Suppliers
DataSheet
General Description
SP8127 General Description
The SP8127 is a high-speed, differential output APC amplifier that integrates the photodiode and adjustable gain block on one chip. Independent gain control allows individual adjustment for 780mn and 650nm wavelength operation, as found in CD/DVD optical storage drives. This allows the user to control the laser power of the system in high-speed DVD+/-RW, DVD-RAM and CD-RW systems. The wide 2V output swing also allows better system performance, through improved dynamic range.
SP8127 Maximum Ratings
absolute maximum rating conditions for extended
Supply Voltage (Vcc)...............6.0V
Reference Voltage (Vs) ............. 6.0V
Output Voltage (Vout).............. Vcc
Junction Temperature (Tj)..........120
Storage Temperature......-40°C to +100°C
Soldering Temperature...........+235°C
Supply Voltage (Vcc)...............6.0V
Reference Voltage (Vs) ............. 6.0V
Output Voltage (Vout).............. Vcc
Junction Temperature (Tj)..........120
Storage Temperature......-40°C to +100°C
Soldering Temperature...........+235°C
SP8127 Features
• Dual wavelength 650 and 780nm
• 100 MHz Bandwidth
• 300 V/µs Slew Rate
• 5 ns Setting Time
• 10 mV Differential Output Offset Voltage
• 25 mV/oC Output Offset Voltage Drift
• -6/+6 dB External Gain Adjust
• Small 8-pin OPLGA package
• 100 MHz Bandwidth
• 300 V/µs Slew Rate
• 5 ns Setting Time
• 10 mV Differential Output Offset Voltage
• 25 mV/oC Output Offset Voltage Drift
• -6/+6 dB External Gain Adjust
• Small 8-pin OPLGA package
SP8127 Typical Application
• CD-R, and CD-RW
• DVD+/-R, DVD+/-RW, and DVD-RAM
• DVD+/-R, DVD+/-RW, and DVD-RAM

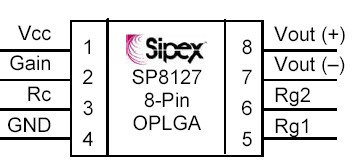

SP8127 Connection Diagram
SP8127
PDF/DataSheet Download
- Datasheet: SP8127
- File Size: 131827 KB
- Manufacturer: SIPEX [Sipex Corporation]
- Click here to Download
