General Description
SP8127N General Description
The SP8127N is a high-speed, differential output APC amplifier that integrates the photodiode and adjustable gain block on one chip. Independent gain control allows individual adjustment for 780mn and 650nm wavelength operation, as found in CD/DVD optical storage drives. This allows the user to control the laser power of the system in high-speed DVD+/-RW, DVD-RAM and CD-RW systems. The wide 2V output swing also allows better system performance, through improved dynamic range.
SP8127N Maximum Ratings
These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.
Supply Voltage (Vcc).........................6.0V
Reference Voltage (Vs) ....................6.0V
Output Voltage (Vout)........................Vcc
Junction Temperature (Tj)...........120 °C
Storage Temperature.-40°C to +100°C
Soldering Temperature..............+235°C
SP8127N Features
• Dual wavelength 650 and 780nm
• 100 MHz Bandwidth
• 300 V/µs Slew Rate
• 5 ns Setting Time
• 10 mV Differential Output Offset Voltage
• 25 mV/oC Output Offset Voltage Drift
• -6/+6 dB External Gain Adjust
• Small 8-pin OPLGA package
• 100 MHz Bandwidth
• 300 V/µs Slew Rate
• 5 ns Setting Time
• 10 mV Differential Output Offset Voltage
• 25 mV/oC Output Offset Voltage Drift
• -6/+6 dB External Gain Adjust
• Small 8-pin OPLGA package
SP8127N Typical Application
• CD-R, and CD-RW
• DVD+/-R, DVD+/-RW, and DVD-RAM
• DVD+/-R, DVD+/-RW, and DVD-RAM

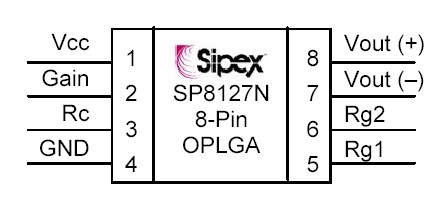

SP8127N Connection Diagram
SP8127N
