Product Details

Description



Pinout

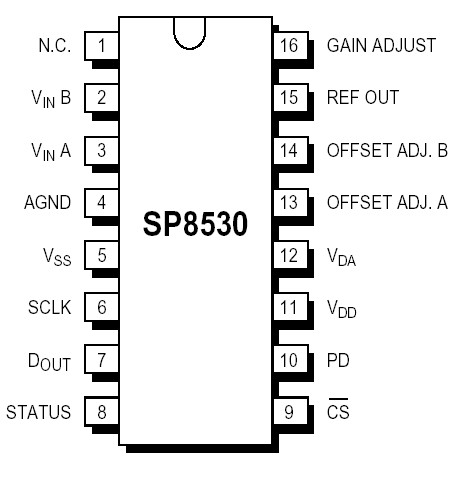

Connection Diagram


Specifications

(TA=+25°C unless otherwise noted) ..............................................
VDD to DGND ............................................................. -0.3V to +7V
VDA to AGND .............................................................. -0.3V to +7V
Vin to AGND .................................................... -0.3V to VDA +0.3V
Digital Input to VSS ........................................... -0.3V to VDD+0.3V
Digital Output to VSS ........................................ -0.3V to VDD+0.3V
Operating Temp. Range
Commercial (J,K Version) ............................................. 0°C to 70°C
Industrial (A,B Version) .......................................... -40°C to +85°C
Storage Temperature .............................................. -65°C to 150°C
Lead Temperature(Solder 10sec) ........................................ +300°C
Power Dissipation to +70°C ................................................ 500mW
Derate Above 70°C ......................................................... 10mW/ °C


Description

The SP8530 is a two channel simultaneous sampling, 12-Bit serial out data acquisition system. The device contains a high speed 12-Bit analog to digital converter, internal reference, and sample/hold circuitry for both channels. The 8530 is available in 16-pin PDIP and SOIC packages, specified over Commercial and Industrial temperature ranges.
