SP8538

PinoutSpecifications(TA=+25°C unless otherwise noted) .....................................................VCC to GND ................................................................................. 7.0VVin to GND .............................................................. -0.3 to VCC +0.3VDig...

product image

SP8538 Picture
See larger image
SeekIC No. : 004500752 Detail

SP8538: PinoutSpecifications(TA=+25°C unless otherwise noted) .....................................................VCC to GND ...................................................................................

SP8538 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP8538
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

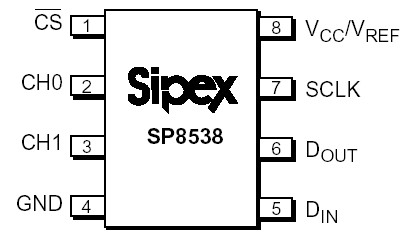

Connection Diagram


Specifications

(TA=+25°C unless otherwise noted) .....................................................
VCC to GND ................................................................................. 7.0V
Vin to GND .............................................................. -0.3 to VCC +0.3V
Digital input to GND ................................................ -0.3 to VCC +0.3V
Digital output to GND .............................................. -0.3 to VCC +0.3V
Operating Temperature Range
Commercial (J, K Version) .................................................. 0°C to 70°C
Industrial (A, B Version) .............................................. -40°C to +85°C
Lead Temperature (Solder 10Sec) ........................................... +300°C
Storage Temperature ................................................ -65°C to +150°C
Power Dissipation to 70°C ........................................................ 500mW


Description

The SP8538 is a very low power 12-Bit data acquisition chip. The SP8538 typically draws 250mA of supply current when sampling at 25 kHz. Supply current drops linearly as the sample rate is reduced. The ADC automatically powers down when not performing conversions, drawing only leakage current. The SP8538 is available in 8-Pin NSOIC packages, specified over Commercial and Industrial temperature ranges. The SP8538 is best suited for Battery-Operated Systems, Portable Data Acquisition Instrumentation, Battery Monitoring, and Remote Sensing applications. The serial port allows efficient data transfer to a wide range of microprocessors and microcontrollers over 3 or 4 wires.
