SPB-37120BLW-1590G

Features: ` 1-Fiber Bi-Directional SFP Optical Transceiver` Complaint with IEEE 802.3ah 100BASE-BX` Simplex SC Connector: SPB-37120W-1590G` Simplex LC Connector: SPB-37120LW-1590G`SFF-8472 Digital Diagnostic Function` 1590 nm DFB LD Transmitter`1510 nm Receiver`Distance Up to 120 km`AC/AC Coupling...

product image

SPB-37120BLW-1590G Picture
See larger image
SeekIC No. : 004500890 Detail

SPB-37120BLW-1590G: Features: ` 1-Fiber Bi-Directional SFP Optical Transceiver` Complaint with IEEE 802.3ah 100BASE-BX` Simplex SC Connector: SPB-37120W-1590G` Simplex LC Connector: SPB-37120LW-1590G`SFF-8472 Digital D...

SPB-37120BLW-1590G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPB-37120BLW-1590G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 ` 1-Fiber Bi-Directional SFP Optical Transceiver
 ` Complaint with IEEE 802.3ah 100BASE-BX
 ` Simplex SC Connector: SPB-37120W-1590G
 ` Simplex LC Connector: SPB-37120LW-1590G
 ` SFF-8472 Digital Diagnostic Function
 ` 1590 nm DFB LD Transmitter
 ` 1510 nm Receiver
 ` Distance Up to 120 km
 ` AC/AC Coupling according to MSA
 ` Single +3.3 V Power Supply
 ` RoHS Compliant
 `0 to 70 Operating : SPB-37120W-1590G
 `-10 to 85 Operating : SPB-37120BW-1590G
 `Class 1 Laser International Safety Standard IEC 60825 Compliant


Application

 ·  WDMFast Ethernet Links
 ·  SONET/SDH Equipment Interconnect
 ·  Fiber Channel Links

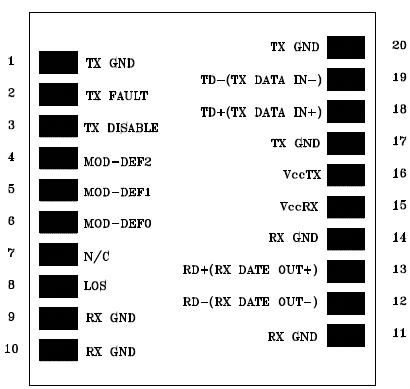

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
 Notes
Storage Temperature
Tstg
-40
85

Operating Case Temperature
Topr
0
-10

70
85
SPB-37120W-1590G
SPB-37120BW-1590G
Power Supply Voltage
VCC
0
3.6
V

Input Voltage
---
GND
VCC
V

Power Current
Iout
0
30
mA




Description

The SPB-37120W-1590G series is small form factor pluggable module for IEEE 802.3ah 100BASE-BX and OC-3/STM-1 SONET/SDH single fiber communications by using 1590 nm transmitter and 1510 nm receiver. It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C series bus specified in the SFP MSA SFF-8472. The transmitter section uses a multiple quantum well 1590 nmlaser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1510 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
