Product Details

Description

Features:

·1-Fiber Bi-Directional SFP Optical Transceiver
·Simplex SC Connector: SPB-5780-1510G
·Simplex LC Connector: SPB-5780L-1510G
·1510 nm DFB LD Transmitter
·1590 nm Receiver
·Distance Up to 80 km
·AC/AC Coupling according to MSA
·Single +3.3 V Power Supply
·RoHS Compliant
·0 to 70oC Operating : SPB-5780-1510G
·-10 to 85oC Operating : SPB-5780B-1510G
·Class 1 Laser International Safety Standard IEC 60825 Compliant

Application

·SONET/SDH Equipment Interconnect
·Fibre Channel Links

Pinout

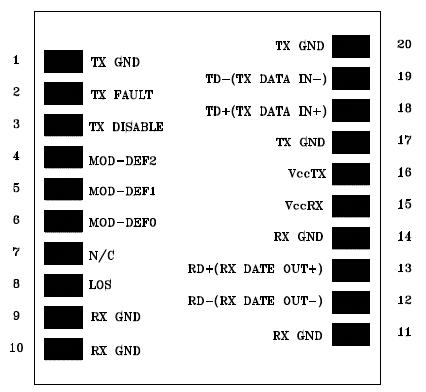

Connection Diagram

Specifications

Parameter	Symbol	Min	Max	Unit	Notes
Storage Temperature	Tstg	-40	85
Operating Case Temperature	Topr	0 -10	70 85		SPB-5780-1510G SPB-5780B-1510G
Power Supply Voltage	Vcc	0	3.6	V
Input Voltage	-	GND	Vcc	V
Output Current	Iout	0	30	mA

Description

The SPB-5780-1510G series is small form factor pluggable module for OC-12/STM-4 SONET/SDH and Fibre Channel single fiber communications by using 1510 nm transmitter and 1590 nm receiver. SPB-5780-1510G is with the SFP 20-pin connector to
allow hot plug capability. The transmitter section uses a multiple quantum well 1510 nm laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1590 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
