SPB-5780W-1510G

Features: ·1-Fiber Bi-Directional SFP Optical Transceiver·Simplex SC Connector: SPB-5780W-1510G·Simplex LC Connector: SPB-5780LW-1510G·SFF-8472 Digital Diagnostic Function·1510 nm DFB LD Transmitter·1590 nm Receiver·Distance Up to 80 km·AC/AC Coupling according to MSA·Single +3.3 V Power Supply·Ro...

product image

SPB-5780W-1510G Picture
See larger image
SeekIC No. : 004500909 Detail

SPB-5780W-1510G: Features: ·1-Fiber Bi-Directional SFP Optical Transceiver·Simplex SC Connector: SPB-5780W-1510G·Simplex LC Connector: SPB-5780LW-1510G·SFF-8472 Digital Diagnostic Function·1510 nm DFB LD Transmitter...

SPB-5780W-1510G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPB-5780W-1510G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·1-Fiber Bi-Directional SFP Optical Transceiver
·Simplex SC Connector: SPB-5780W-1510G
·Simplex LC Connector: SPB-5780LW-1510G
·SFF-8472 Digital Diagnostic Function
·1510 nm DFB LD Transmitter
·1590 nm Receiver
·Distance Up to 80 km
·AC/AC Coupling according to MSA
·Single +3.3 V Power Supply
·RoHS Compliant
·0 to 70oC Operating : SPB-5780-1510WG
·-10 to 85oC Operating : SPB-5780BW-1510G
·Class 1 Laser International Safety Standard IEC 60825 Compliant


Application

·SONET/SDH Equipment Interconnect
·Fibre Channel Links

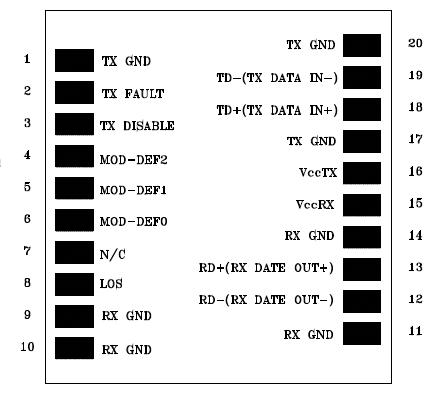

Pinout

Connection Diagram


Specifications

Parameter Symbol Min Max Unit Notes
Storage Temperature Tstg -40 85
Operating Case Temperature Topr 0
-10		 70
85		 SPB-5780W-1510G
SPB-5780BW-1510G
Power Supply Voltage VCC 0 3.6 V
Input Voltage --- GND VCC V
Power Current Iout 0 30 mA



Description

The SPB-5780W-1510G series is small form factor pluggable module for OC-12/STM-4 SONET/SDH and Fibre Channel single fiber communications by using 1510 nm transmitter and 1590 nm receiver. SPB-5780W-1510G is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C series bus specified in the SFP MSA SFF-8472. The transmitter section uses a multiple quantum well 1510 nmlaser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1590 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
