Product Details

Description



Features:

·1-Fiber Bi-Directional SFP Optical Transceiver
·Compliant with IEEE 802.3ah-2004 1000BASE-BX
·Simplex SC Connector: SPB-7780W-1510G
·Simplex LC Connector: SPB-7780LW-1510G
·SFF-8472 Digital Diagnostic Function
·1510 nm DFB LD Transmitter
·1590 nm Receiver
·Distance Up to 80 km
·AC/AC Coupling according to MSA
·Single +3.3 V Power Supply
·RoHS Compliant
·0 to 70oC Operating
·Class 1 Laser International Safety Standard IEC 60825 Compliant


Application

·WDMGigabit Ethernet Links
·SONET/SDH Equipment Interconnect
·Fibre Channel Links

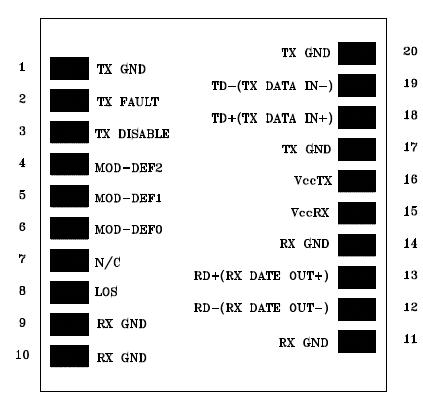

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
 Notes
Storage Temperature
Tstg
-40
85

Operating Case Temperature
Topr
0
70

Relative Humidity
RH
0
85
%
 Non condensing
Power Supply Voltage
VCC
0
3.6
V

Input Voltage
---
GND
VCC
V

Power Current
Iout
0
30
mA




Description

The SPB-7780W-1510G series is small form factor pluggable module for Gigabit Ethernet 1000BASE-BX and Fibre Channel single fiber communications by using 1510 nm transmitter and 1590 nm receiver. SPB-7780W-1510G is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. The transmitter section uses a multiple quantum well 1510 nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1590 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
