Product Details

Description

Features:

`1-Fiber Bi-Directional SFP Optical Transceiver
`Up to 4.25Gb/s
`Compliant with Fibre Channel FC-PI 400/200/100
`Compliant with IEEE 802.3ah-2004 1000BASE-BX
`Simplex LC Connector
`1590 nm DFB LD Transmitter
`1510 nm Receiver
`Distance Up to 80 km
`AC/AC Coupling according to MSA
`Single +3.3 V Power Supply
`RoHS Compliant
`0 to 70 Operating
`Class 1 Laser International Safety Standard IEC 60825 Compliant

Application

·Fibre Channel Links
·WDMGigabit Ethernet Links
·SONET/SDH Equipment Interconnect

Pinout

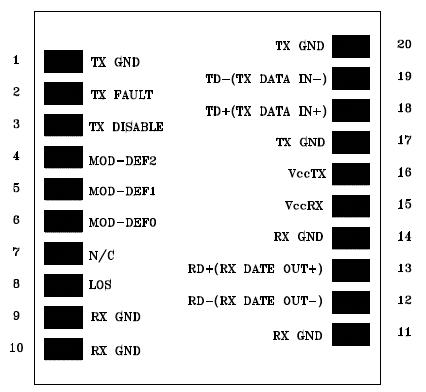

Connection Diagram

Specifications

Parameter	Symbol	Min	Max	Unit	Notes
Storage Temperature	Tstg	-40	85
Operating Case Temperature	Topr	0	70
Relative Humidity	RH	0	85	%	Non condensing
Power Supply Voltage	Vcc	0	3.6	V
Input Voltage	-	GND	Vcc	V
Output Current	Iout	0	30	mA

Description

The SPB-8880L-1590G series is small form factor pluggable module for 4x/2x/1x Fibre Channel and 1000BASE-BX Gigabit Ethernet single fiber communications by using 1590 nm transmitter and 1510 nm receiver. SPB-8880L-1590G is with the SFP 20-pin connector to allow hot plug capability. The transmitter section uses a multiple quantum well 1590 nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1510 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
