SPB-8880LW-1510G

Features: · 1-Fiber Bi-Directional SFP Optical Transceiver· Up to 4.25 Gb/s· Compliant with Fibre Channel FC-PI 400/200/100· Compliant with IEEE 802.3ah-2004 1000BASE-BX· Simplex LC Connector· 1510 nm DFB LD Transmitter· 1590 nm Receiver· Distance Up to 80 km· SFF-8472 Digital Diagnostic Function·...

product image

SPB-8880LW-1510G Picture
See larger image
SeekIC No. : 004500924 Detail

SPB-8880LW-1510G: Features: · 1-Fiber Bi-Directional SFP Optical Transceiver· Up to 4.25 Gb/s· Compliant with Fibre Channel FC-PI 400/200/100· Compliant with IEEE 802.3ah-2004 1000BASE-BX· Simplex LC Connector· 1510 ...

SPB-8880LW-1510G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPB-8880LW-1510G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 1-Fiber Bi-Directional SFP Optical Transceiver
· Up to 4.25 Gb/s
· Compliant with Fibre Channel FC-PI 400/200/100
· Compliant with IEEE 802.3ah-2004 1000BASE-BX
· Simplex LC Connector
· 1510 nm DFB LD Transmitter
· 1590 nm Receiver
· Distance Up to 80 km
· SFF-8472 Digital Diagnostic Function
· AC/AC Coupling according to MSA
· Single +3.3 V Power Supply
· RoHS Compliant
· 0 to 70oC Operating
· Class 1 Laser International Safety Standard IEC 60825 Compliant


Application

·Fibre Channel Links
·WDMGigabit Ethernet Links
·SONET/SDH Equipment Interconnect


Pinout

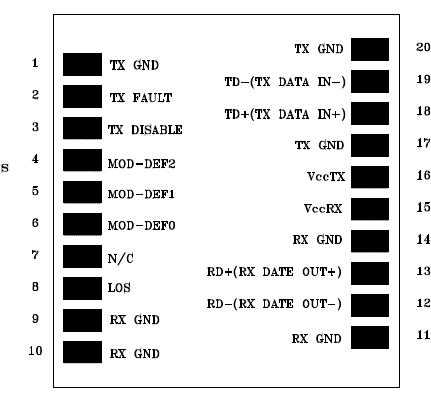

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
 Notes
Storage Temperature
Tstg
-40
85

Operating Case Temperature
Topr
0
70

Relative Humidity
RH
0
85
%
 Non condensing
Power Supply Voltage
VCC
0
3.6
V

Input Voltage
---
GND
VCC
V

Power Current
Iout
0
30
mA




Description

The SPB-8880LW-1510G series is small form factor pluggable module for 4x/2x/1x Fibre Channel and 1000BASE-BX Gigabit Ethernet single fiber communications by using 1510 nm transmitter and 1590 nm receiver. SPB-8880LW-1510G is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C series bus specified in the SFP MSA SFF-8472. The transmitter section uses a multiple quantum well 1510 nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1590 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
