Product Details

Description



Features:

· 1-Fiber Bi-Directional SFP Optical Transceiver
· Simplex SC Connector: SPB-9780W-1510G
· Simplex LC Connector: SPB-9780LW-1510G
· Tri-rate for OC-48 / STM-16, Gigabit Ethernet 1000BASE & Fibre Channel
· SFF-8472 Digital Diagnostic Function
· 1510 nm DFB LD Transmitter
· 1590 nm Receiver
· Distance Up to 80 km
· AC/AC Coupling according to MSA
· Single +3.3 V Power Supply
· RoHS Compliant
· 0 to 70oC Operation
· Class 1 Laser International Safety Standard IEC 60825 Compliant


Application

· WDMOC-48 / STM-16 Links
· Gigabit Ethernet Interconnect
· Fibre Channel Links

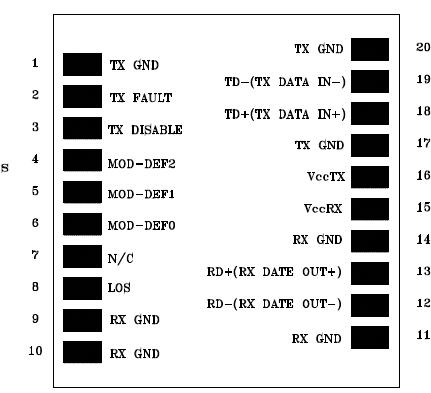

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
 Notes
Storage Temperature
Tstg
-40
85

Operating Case Temperature
Topr
0
70

Relative Humidity
RH
0
85
%
 Non condensing
Power Supply Voltage
VCC
0
3.6
V

Input Voltage
---
GND
VCC
V

Power Current
Iout
0
30
mA




Description

The SPB-9780W-1510G series is high performance module for OC-48 / STM-16 and Gigabit Ethernet 1000BASE single fiber communications by using 1510 nm transmitter and 1590 nm receiver. SPB-9780W-1510G is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. The transmitter section uses a multiple quantum well 1510 nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section is designed to receive 1590 nm signal. The receiver section uses an integrated 1590 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
