Part Number: SPS-33160G
Description: The SPS-33160G series single mode transceiver is small form factor pluggable module for bi-directional...
- Table of contents:
SPS-33160G
-
Suppliers
DataSheet
General Description
SPS-33160G General Description
The SPS-33160G series single mode transceiver is small form factor pluggable module for bi-directional serial optical data communications such as SONET OC-3 / SDH STM-1 and Fast Ethernet. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550 nm. The transmitter section uses a 1550 nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
SPS-33160G Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Units |
Notes |
|
Storage Temperature |
Tstg |
-40 |
85 |
oC |
|
|
Operating Case Temperature |
Topr |
0 -10 |
70 85 |
oC |
SPS-33160G SPS-33160BG |
|
Power Supply Voltage |
Vcc |
-0.5 |
3.6 |
V |
SPS-33160G Features
·Hot-Pluggable SFP Footprint LC Optical Transceiver
·Small Form-Factor Pluggable (SFP) MSA compatible
·Compliant with SONET OC-3 / SDH STM-1
·1550 nm DFB LD Transmitter
·37 dB Power Budget at Least
·Distance up to 160 km
·AC/AC Coupling according to MSA
·Single +3.3 V Power Supply
·RoHS Compliant
·0 to 70oC Operation: SPS-33160G
·-10 to 85oC Operation: SPS-33160BG
·Class 1 Laser International Safety Standard IEC-60825 Compliant
·Small Form-Factor Pluggable (SFP) MSA compatible
·Compliant with SONET OC-3 / SDH STM-1
·1550 nm DFB LD Transmitter
·37 dB Power Budget at Least
·Distance up to 160 km
·AC/AC Coupling according to MSA
·Single +3.3 V Power Supply
·RoHS Compliant
·0 to 70oC Operation: SPS-33160G
·-10 to 85oC Operation: SPS-33160BG
·Class 1 Laser International Safety Standard IEC-60825 Compliant
SPS-33160G Typical Application
·ATM Switches and Routers
·SONET / SDH Switch Infrastructure
· Fast Ethernet Applications
·SONET / SDH Switch Infrastructure
· Fast Ethernet Applications

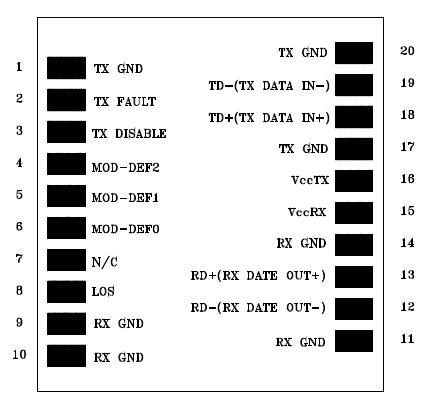

SPS-33160G Connection Diagram
