SPS-9340MW-CXX0G

Features:

Speed up to 2.67 Gb/s
Hot-Pluggable SFP Footprint LC Optical Transceiver
Small Form-Factor Pluggable (SFP) MSA compatible
18 Wavelength (): 1270 nm to 1610 nm CWDMDFB LD Transmitter
Compliant with SONET OC-48 IR / SDH STM-16
Compliant with Fibre Channel 1X/2X SM-LC-L FC-PI
Compliant with IEEE 802.3z 1000BASE
SFF-8472 Digital Diagnostic Function
Multi-rate Operation
18 dB Power Budget at Least
AC/AC Coupling according to MSA
Single +3.3 V Power Supply
RoHS Compliant
0 to 70oC Operation
Class 1 Laser International Safety Standard IEC-60825 Compliant


Application

SONET OC-48 / SDH STM-16
SONET OC-12 / SDH STM-4
SONET OC-3 / SDH STM-1
Gigabit Ethernet / 1X/2X Fibre Channel

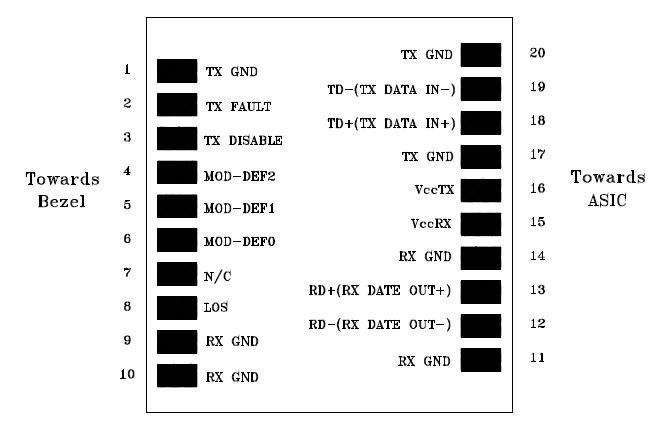

Pinout




Specifications

Parameter	Symbol	Min	Max	Units	Notes
Storage Temperature	Tstg	-40	85
Operating Case Temperature	Topr	0	70		Air flow 1m/sec
Power Supply Voltage	Vcc	-0.5	3.6	V

Description

The SPS-9340MW-CXX0G series single mode transceivers is small form factor pluggable module for bi-directional serial optical data communications such as SONET OC-48 / SDH STM-16, Gigabit Ethernet 1000BASE and Fibre Channel 1X/2X SM-LC-L FC-PI. It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are eighteen center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. A guaranteed minimum optical link budget of 18 dB is offered The transmitter section uses a multiple quantum well CWDM DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) SPS-9340MW-CXX0G mounted in an optical header and a limiting post-amplifier IC.
