Features: • 16-bit, 5 MSPS CMOS analog-to-digital converter
• On-chip PGA: gain range from 0 to 19.5 dB in seven selectable settings:0 dB, +2.9 dB, +5.8 dB, +11.8 dB, +14.8 dB, +17.5 dB,+19.5 dB
• DLE: ±0.5 LSB, ILE: ±1.25 LSB
• SFDR: 94 dB @ ƒIN = 900 kHz, 8.1 dBFS
• Internal sample-and-hold and voltage reference
• Power dissipation: 465 mW at 5 MSPS
• +5 V analog supply and +3.3 to +5.25 V digital output supply
• 44-lead LQFP plastic packag
Application• Data acquisition systems
• IR imaging
• Scanners and digital copiers
• High-end CCD cameras
• Medical imaging
• Wireless communications
• Lab and test equipment
• Automatic test equipment

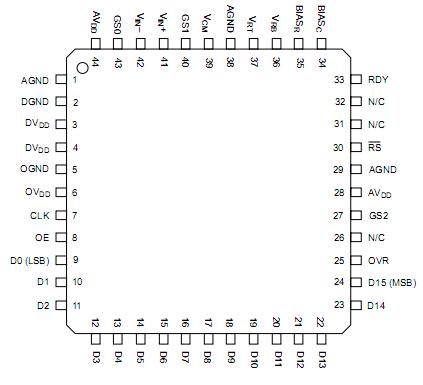

Pinout
SpecificationsSupply Voltages
AVDD...................................................................... +6 V
DVDD ..................................................................... +6 V
OVDD ..................................................................... +6 V
Input Voltages
Analog Input ................................. 0.5 V to VDD +0.5 V
CLK Input ............................................................... VDD
AVDD DVDD .................................................. ±100 mV
Delta between AGND, DGND, and OGND...........±100 mV
Output
Digital Outputs .................................................... 10 mA
Temperature
Operating Temperature ........................... 40 to +85 °C
Junction Temperature ...................................... +175 °C
Lead Temperature (soldering 10 seconds) ...... +300 °C
Storage Temperature ............................ 65 to +150 °CDescriptionThe SPT8100 is a high-performance,16-bit analog-to-digital converter that operates at a sample rate of up to 5 MSPS.Excellent dynamic and high linear-ity is achieved by a digitally calibrated pipelined architec-ture fabricated in CMOS process technology.
A low-noise programmable gain amplifier (PGA) is also in-corporated on chip. The PGA is digitally programmable in seven selected settings over a 0 to +19.5 dB range. The SPT8100 also features an on-chip internal sample-and-hold and internal reference for minimal external circuitry.
It operates from a single +5 V supply.Total power dissipation,including internal reference,is 465 mW.A separate digital output supply pin is provided for +3.3 V or 5 V logic output levels. The SPT8100 is available in a 44-lead LQFP package over the industrial temperature range of 40 to +85
SPT8100 Data Sheet
