SPX1004

Features: Initial Voltage Tolerance:SPX1004-1.2 = ±4mV SPX1004-2.5 = ±20mVLow Dynamic Impedance 0.6 Ω Max. Low Operating Current:SPX1004-1.2 = ±10µA SPX1004-2.5 = ±20µA Wide Operating Current Range 10µA to 20mADirect Replacement for LT1004,LM1004 and AS1004Application A/D ...

product image

SPX1004 Picture
See larger image
SeekIC No. : 004501479 Detail

SPX1004: Features: Initial Voltage Tolerance:SPX1004-1.2 = ±4mV SPX1004-2.5 = ±20mVLow Dynamic Impedance 0.6 Ω Max. Low Operating Current:SPX1004-1.2 = ±10µA SPX1004-2.5 = ±20µA Wide Opera...

SPX1004 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPX1004
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  Initial Voltage Tolerance:SPX1004-1.2 = ±4mV SPX1004-2.5 = ±20mV
  Low Dynamic Impedance 0.6 Ω Max.
  Low Operating Current:SPX1004-1.2 = ±10µA SPX1004-2.5 = ±20µA
  Wide Operating Current Range 10µA to 20mA
  Direct Replacement for LT1004,LM1004 and AS1004




Application

  A/D and D/A Reference
  Reference for 5V Systems
  Digital Voltmeter
  Power Supply Monitor




Pinout

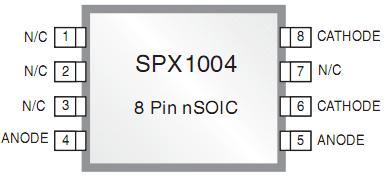

Connection Diagram


Specifications

Forward Current (IAK).....................................................10mA
Reverse Current (IKA).....................................................30mA
Lead Temperature (soldering, 10 seconds).................300°C
Storage Temperature Range.......................-65°C to +150°C
Junction Temperature..................................................150°C
Continuous Power Dissipation (PD)
                TO-92.........................................................775mW
                SOIC-8.......................................................750mW
                SOT-89.....................................................1000mW


Description

The SPX1004 is a 2-terminal bandgap precision voltage reference that provides a stable fixed output voltage of 1.2V and 2.5V with a tolerance of ±4mV for SPX1004-1.2 and ±20mV for SPX1004-2.5. Design, process and precision on chip trimming yield a very low tempera-ture coefficient of 25 ppm/°C.

The SPX1004 can be used as a pin-to-pin replacement for the LT1004, LM1004 or AS1004.The SPX1004 is available in SOT-89, SOIC-8 and TO-92 packages over the operating temperature range of 0°C to 70°C.
