SPX2700

Features:

• Output Current 700mA at 3.3V and 5V
• Internal Short Circuit Current Limit
• Dropout Voltage 0.5V at 700mA Output
• Extremely Tight Load and Line Regulation
• Very Low Temperature Coefficient
• Mirror Image Insertion Protection
• Unregulated DC Input Can Withstand -20V Reverse Battery  and +60V Positive Transients
• Direct Replacement For LM2937 Socket


Application

• Battery Powered Systems
• Cordless Telephones
• Automotive Electronics
• Portable/ Palm Top / Notebook Computers
• Portable Consumer Equipment
• Portable Instrumentation
• SMPS Post-Regulator
• Voltage Reference

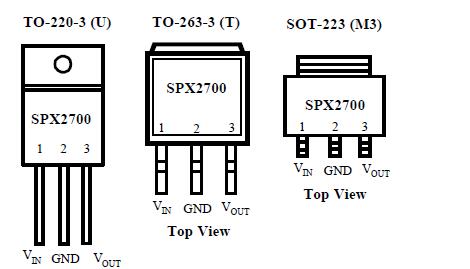

Pinout




Specifications

Power Dissipation...........................................Internally Limited
Lead Temp. (Soldering, 10 Seconds) .............................. 260°C
Feedback Input Voltage...................................... -1.5V to +30V
Shutdown Input Voltage..................................... -0.3V to +30V
Error Comparator Output ................................... -0.3V to +30V
Input Supply Voltage Continuous .................................... +12V
                                     Transient..........................-20V to +60V
Storage Temperature Range ............................-65° to +150°C
Operating Junction Temperature Range ..... ...-40°C to +125°C
ESD Rating ....................................................................2KV Min




Description

The SPX2700/01/02 are a low power positive voltage regulators. The SPX2700/01/02 offers 700mA output current with a dropout voltage of only 0.5V and over temperature dropout is up to 1V. The quiescent current is 10mA at differential output of 5V and output current of 700mA. A higher quiescent current can exist when the device is in dropout mode (VIN -VOUT 3V).

The SPX2700 will automatically shut down to protect both the internal circuits and the load. This device also features short circuit and thermal overload protection.

The SPX2700/01/02 is offered in 3 and 5 pin TO-220, TO-263 and 3-pin SOT-223 packages compatible with other 5V and 3.3V regulators, TO-263 and 3-pin SOT-223. The device is offered in standard output voltages of 5V and 3.3V as well as in adjustable output regulator.
