SPX2730

Features: • Adjustable Output Down To 1.2V• 1% output accuracy @ 3.3V, 5.0V• Output Current of 3A• Low Dropout Voltage 370mV(Typ.) @ 3A.• Extremely Tight Load And Line Regulation• Extremely Fast Transient Response• Standard 3-Terminal Low Cost TO-220, TO-2...

product image

SPX2730 Picture
See larger image
SeekIC No. : 004501518 Detail

SPX2730: Features: • Adjustable Output Down To 1.2V• 1% output accuracy @ 3.3V, 5.0V• Output Current of 3A• Low Dropout Voltage 370mV(Typ.) @ 3A.• Extremely Tight Load And Line ...

SPX2730 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPX2730
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Adjustable Output Down To 1.2V
• 1% output accuracy @ 3.3V, 5.0V
• Output Current of 3A
• Low Dropout Voltage 370mV(Typ.) @ 3A.
• Extremely Tight Load And Line Regulation
• Extremely Fast Transient Response
• Standard 3-Terminal Low Cost TO-220, TO-263
• Reverse-battery and "Load Dump" Protection
• Zero Current Shutdown Mode (5-Pin Versions)
• Error Flag Signal Output Out-of Regulation
   (5-Pin Versions)


Application

• Powering VGA & Sound Card
• Power PCTMSupplies
• SMPS Post-Regulator
• High Efficiency "Green" Computer Systems
• High Efficiency Linear Power Supplies
• Portable Instrumentation
• Constant Current Regulators
• Adjustable Power Supplies
• Battery charger

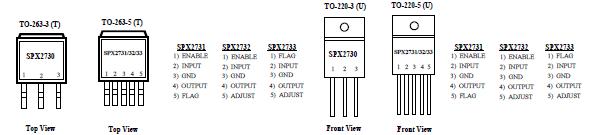

Pinout

Connection Diagram


Specifications

Lead Temp. (Soldering, 5 Seconds) . . . ............................. 260
Maximum Input Voltage  . . . . . . . . . . . . . . . .. ..................... 16V
Storage Temperature Range . ............................-65 to +150
Operating Junction Temperature Range
SPX2730/31/32/33 Control Section......................... -45+125
SPX2730/31/32/33 Power Transistor...................... -45+150


Description

The SPX2730/31/32/33 is a 3A high accuracy, low dropout voltage regulator (370mV(Typ)@ 3A). The SPX2730/31/32/33 is designed for low voltage application that requires lower dropout voltage and faster transient response. This device is an excellent choice for use in powering low voltage microprocessor that require a lower dropout, faster transient response to regulate from +2.5V to 3.8V supplies and as a post regulator for switching supplies applications.

The SPX2730/31/32/33 offers full protection against over-current faults, reversed input polarity, reversed load insertion, and positive and negative transient voltage. On-Chip trimming adjusts the reference voltage to 1%. Features such as enable pin, Error flag pin are also included in the 5-pin package.

The SPX2730/31/32/33 are offered in 3 & 5 pin TO-220 & TO-263 packages compatible with other 3 terminal regulators.
