MFG:SIPEX Package Cooled:SOP-8 D/C:07+
MFG: SIPEX
Package Cooled: SOP-8
D/C: 07+
Description: The SPX3819 is a positive voltage regulator with a low dropout voltage and low noise output. In additi...
The SPX3819 is a positive voltage regulator with a low dropout voltage and low noise output. In addition, this device offers a very low ground current of 800A at 100mA output. The SPX3819 has an initial tolerance of less than 1% max and a logic compatible ON/OFF switched input. When disabled power consumption drop to nearly zero. Other key features include reverse battery protection, current limit, and thermal shutdown. The SPX3819 includes a reference bypass pin for optimal low noise output performance. With its very low output temperature coefficient, this device also makes a superior low power voltage reference.

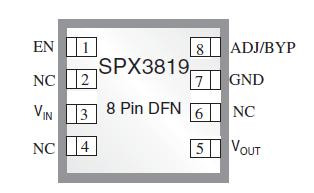

The SPX3819 is an excellent choice for use in battery-powered applications such as cordless telephones, radio control systems, and portable computers. It is available in several fixed voltages 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 5.0V or with an adjustable output. This device is offered in 8 pin nSOIC, 8 pin DFN and 5-pin SOT-23 packages.
SPX3819
PDF/DataSheet Download
The SPX3431 is a 3-terminal Adjustable Shunt Voltage Regulator providing a highly accurate 0.5% bandgap reference. SPX3431 acts as an open-loop error amplifier with a 2.5V temperature compensation reference. The SPX3431 thermal stability, wide operating curr...
Sipex's SPX2975 is a low dropout linear regulator with integrated PNP pass transistor. The part is available in a 5 pin TO-220 package or surface mount TO-263. The part used to convert an automotive battery voltage, with allowable input up to 45V, down to 5V...
Sipex's SPX2969 is a low dropout linear regulator with integrated PNP pass transistor. The part is designed for automotive environment, and thus can withstand up to 45V and 125°C temperature range. The output voltage is set at a fixed 5V, and the part is gua...
Sipex's SPX2967 is a 5 volt low dropout voltage regulator for automotive applications. It suppliesoutput current at 400mA. The IC has short-circuit protection and has an overtemperature protection circuit. The part is available in 7 pin TO-220 and TO-263 pac...
The SPX2955/56/SPX2957 is a low power voltage regulator. This device is an excellent choice for use in battery-powered applications such as cordless telephones, radio control systems, and portable computers. The SPX2955/56/SPX2957 features very low quiescent...
The SPX2955/SPX2956/57 is a low power voltage regulator. This device is an excellent choice for use in battery-powered applications such as cordless telephones, radio control systems, and portable computers. The SPX2955/SPX2956/57 features very low quiescent...
