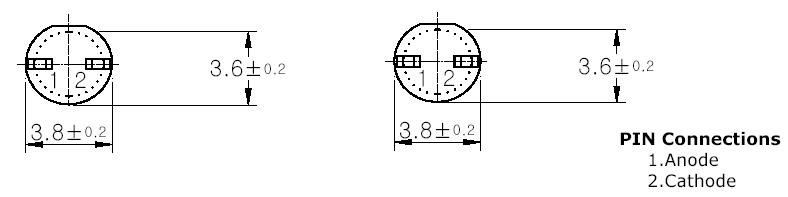

Features: • Red Colored lens type• 3mm(T-1) all plastic mold type• Ultra luminosity• Low power consumptionPinoutSpecifications Characteristic Symbol Ratings Unit Power Dissipation PD 70 mW Forward Current IF 30 mA *1Peak Forward Current IFP 50 mA...
SR3417-U(B): Features: • Red Colored lens type• 3mm(T-1) all plastic mold type• Ultra luminosity• Low power consumptionPinoutSpecifications Characteristic Symbol Ratings Unit ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

| Characteristic | Symbol | Ratings | Unit |
| Power Dissipation | PD | 70 | mW |
| Forward Current | IF | 30 | mA |
| *1Peak Forward Current | IFP | 50 | mA |
| Reverse Voltage | VR | 4 | V |
| Operating Temperature | Topr | -25∼85 | |
| Storage Temperature | Tstg | -30∼100 | |
| *2Soldering Temperature | Tsol | 260 for 5 seconds | |
