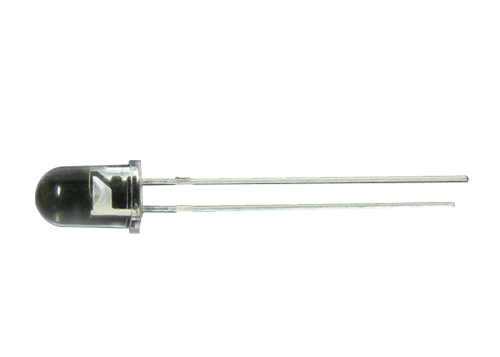

product image

SR5311-V(B) Picture
See larger image
SeekIC No. : 004502123 Detail

SR5311-V(B): Features: • Colorless transparency lens type• 5mm(T-13/4) all plastic mold type• High luminosityPinoutSpecifications Characteristic Symbol Ratings Unit Power Dissipation...

SR5311-V(B) Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SR5311-V(B)
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Colorless transparency lens type
• 5mm(T-13/4) all plastic mold type
• High luminosity




Pinout



Connection Diagram




Specifications

Characteristic Symbol Ratings Unit
Power Dissipation PD 70 mW
Forward Current IF 30 mA
*1Peak Forward Current IFP 50 mA
Reverse Voltage VR 4 V
Operating Temperature Topr -25∼85
Storage Temperature Tstg -30∼100
*2Soldering Temperature Tsol 260 for 5 seconds

*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2. Keep the distance more than 2.0mm from PCB to the bottom of LED package




Description

SR5311-V(B) has been used ,as a lense package, for a sign board and many electric appliances. * High brightness for the colorful sign boards * Low power consumption lamps can save more energy * Lensed package allow user to make more eradiating power
