SRP300A

Features: Plastic package has Underwriters LaboratoryFlammability Classification 94V-0High surge current capabilityConstruction utilizing void-freemolded plastic technique3.0 Ampere operation atTA=55°C with no thermal runawayFast switching for high efficiencyHigh temperature soldering guaranteed:2...

product image

SRP300A Picture
See larger image
SeekIC No. : 004502923 Detail

SRP300A: Features: Plastic package has Underwriters LaboratoryFlammability Classification 94V-0High surge current capabilityConstruction utilizing void-freemolded plastic technique3.0 Ampere operation atTA=5...

SRP300A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SRP300A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
High surge current capability
Construction utilizing void-free
molded plastic technique
3.0 Ampere operation at
TA=55°C with no thermal runaway
Fast switching for high efficiency
High temperature soldering guaranteed:
250°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension




Pinout

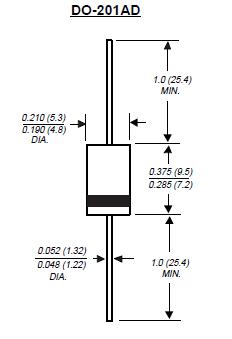

Connection Diagram




Specifications

SYMBOLS
SRP
300A
SRP
300B
SRP
300D
SRP
300G
SRP
300J
SRP
300K
UNITS
Maximum repetitive peak reverse voltage
VRRM
50
100
200
400
600
800
Volts
Maximum RMS voltage
VRMS
35
70
140
282
420
560
Volts
Maximum DC blocking voltage
VDC
50
100
200
400
600
800
Volts
Maximum average forward rectified current
0.375" (9.5mm) lead length at TA=55°C
I(AV)
3.0
Amps
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method) at TA=55°C
IFSM
150.0
Amps
Maximum instantaneous forward voltage at 3.0A
VF
1.3
Volts
Maximum DC reverse current TA=25°C
at rated DC blocking voltage TA=100°C
IR
10.0
A
200
300
400
500
Maximum reverse recovery time (NOTE 1)
trr
100
100
150
150
200
200
ns
Typical junction capacitance (NOTE 2)
CJ
28.0
pF
Typical thermal resistance (NOTE 3)
RJA
22.0
°C/W
Operating junction temperature range
TJ
-50 to +125
°C
Storage temperature range
TSTG
-50 to +150
°C
(1) Reverse recovery test conditions:IF=0.5A, IR=1.0A, Irr=0.25A
(2) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(3) Thermal resistance from junction to ambient at 0.375" (9.5mm) lead length with both leads equally heat sink




Description

SRP300A thru SRP300K datasheet
