SRS1660

Schottky (Diodes & Rectifiers) 16A 60V

product image

SRS1660 Picture
SeekIC No. : 00187449 Detail

SRS1660: Schottky (Diodes & Rectifiers) 16A 60V

floor Price/Ceiling Price

US $ .55~.85 / Piece | Get Latest Price
Part Number:
SRS1660
Mfg:
Taiwan Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~100
  • 100~500
  • 500~800
  • Unit Price
  • $.85
  • $.65
  • $.55
  • $.55
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Schottky Diodes Peak Reverse Voltage : 60 V
Forward Continuous Current : 16 A Max Surge Current : 150 A
Configuration : Dual Common Cathode Forward Voltage Drop : 0.7 V at 8 A
Maximum Reverse Leakage Current : 500 uA Operating Temperature Range : - 65 C to + 150 C
Mounting Style : SMD/SMT Package / Case : D2PAK
Packaging : Reel

Description

Recovery Time :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Product : Schottky Diodes
Packaging : Reel
Maximum Reverse Leakage Current : 500 uA
Operating Temperature Range : - 65 C to + 150 C
Peak Reverse Voltage : 60 V
Configuration : Dual Common Cathode
Max Surge Current : 150 A
Package / Case : D2PAK
Forward Continuous Current : 16 A
Forward Voltage Drop : 0.7 V at 8 A


Features:

 For surface mounted application
 Low forward voltage drop
 High current capability
 High reliability
 High surge current capability



Pinout

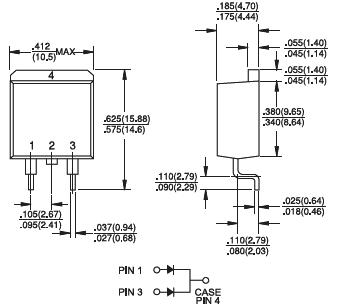

  Connection Diagram


Specifications

Type Number
Symbol
SRS
1620
SRS
1630
SRS
1640
SRS
1650
SRS
1660
Units
Maximum Recurrent Peak Reverse Voltage
VRRM
20
30
40
50
60
V
Maximum RMS Voltage
VRMS
14
21
28
35
42
V
Maximum DC Blocking Voltage
VDC
20
30
40
50
60
V
Maximum Average Forward Rectified Current
See Fig. 1
I(AV)
16.0
A
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated Load
(JEDEC method )
IFSM
200
A
Maximum Instantaneous Forward Voltage
@8.0A
VF



0.55

0.70
V
Maximum D.C. Reverse Current @ Tc=25
at Rated DC Blocking Voltage @ Tc=100
IR
0.5
50
mA
mA
Typical Thermal Resistance (Note 1)
RJC
2.0
/W
Typical Junction Capacitance (Note 2)
Cj
700
460
pF
Operating Junction Temperature Range
TJ
-65 to +125
-65 to +150
Storage Temperature Range
TSTG
-65 to +150

1. Thermal Resistance from Junction to Case Per Leg
2. Measured at 1MHz and Applied Reverse Voltage of 4.0V D.C.
