SSD1730

` Single Power Supply Operation, +2.4V to +3.6V
` Low current consumption
` Two step-up modes, 5X or 6X step-up by internal charge pump DC/DC converter
` Internal LCD voltage generator to generate all LCD voltages required for 4-line MLA driving
` External contrast control
` Internal V1 discharge circuit to discharge the residual charge at the row driver negative voltage-side power
    supply voltage terminal V1
` Internal "power off" function using an external signal
` Equipped internally with a LCD polarity reverse signal generator
` Polarity reversed period in the range of 2P to 17P

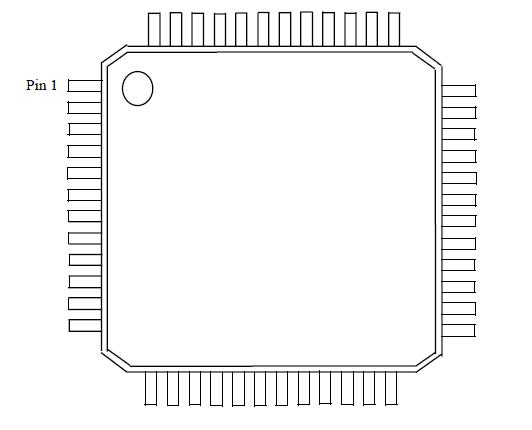

` Available in 48 pin QFP package (0.5 mm terminal pitch)

The SSD1730 is a power chip for operating four-line MLA (Multi Line Addressing) LCD drivers. It consists of a CMOS charge pump-type voltage converter that can generate all the bias voltages required for the four-line MLA drive based on a single power supply input.

SSD1730 can be used for the system that is formed by a column (segment) driver such as SSD1870 and a row (common) driver such as SSD1881. Such type of display system is able to produce a module with lower power consumption when comparing with the conventional driving method.
