Features: Filterless Class-D amplifier with built-in output stage1.4 W into 8 at 5.0 V supply with less than 1% THD85% efficiency at 5.0 V, 1.4 W into 8 speakerBetter than 98 dB SNR (signal-to-noise ratio)Single-supply operation from 2.5 V to 5.0 V20 nA ultralow shutdown currentShort-circuit and...
SSM2301: Features: Filterless Class-D amplifier with built-in output stage1.4 W into 8 at 5.0 V supply with less than 1% THD85% efficiency at 5.0 V, 1.4 W into 8 speakerBetter than 98 dB SNR (signal-to-noi...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Supply Current | 4.2mA |
Output Power (W) | 1.4W |
Parameter | Rating |
Supply Voltage | 6 V |
Input Voltage | VDD |
Common-Mode Input Voltage | VDD |
Storage Temperature Range | −65°C to +150°C |
Operating Temperature Range | −40°C to +85°C |
Junction Temperature Range | −65°C to +165°C |
Lead Temperature Range (Soldering, 60 sec) |
300°C |

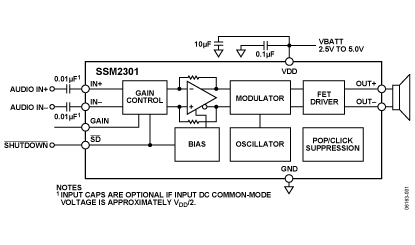

The SSM2301 is a fully integrated, high efficiency, Class-D audio amplifier. It is designed to maximize performance for mobile phone applications. The application circuit requires a minimum of external components and operates from a single 2.5 V to 5.0 V supply. It is capable of delivering 1.4 W of continuous output power with less than 1% THD + N driving an 8 load from a 5.0 V supply.
The SSM2301 features a high efficiency, low noise modulation scheme that does not require any external LC output filters. The modulation continues to provide high efficiency even at low output power. It operates with 85% efficiency at 1.4 W into 8 from a 5.0 V supply and has a signal-to-noise ratio (SNR) that is better than 93 dB. Spread-spectrum modulation is used to provide lower EMI-radiated emissions compared with other Class-D architectures.
The SSM2301 has a micropower shutdown mode with a maximum shutdown current of 30 nA. Shutdown is enabled by applying a logic low to the SD pin.
The device also includes pop-and-click suppression circuitry. This minimizes voltage glitches at the output during turn-on and turn-off, thus reducing audible noise on activation and deactivation.
The fully differential input of the SSM2301 provides excellent rejection of common-mode noise on the input. Input coupling capacitors can be omitted if the dc input common-mode voltage is approximately VDD/2.
The SSM2301 also has excellent rejection of power supply noise, including noise caused by GSM transmission bursts and RF rectification. PSRR is typically 63 dB at 217 Hz.
The gain can be set to 6 dB or 12 dB utilizing the gain control select pin connected respectively to ground or VDD. Gain can also be adjusted externally by using an external resistor.
The SSM2301 is specified over the comercial temperature range (−40°C to +85°C). It has built-in thermal shutdown and output short-circuit protection. It is available in an 8-lead, 3 mm * 3 mm lead-frame chip scale package (LFCSP).
