Product Details

Description



Features:

"CIickless" Bilateral Audio Switching
Four SPST Switches in a 20-Pin Package
Ultralow THD+N: 0.0008% @ 1 kHz (2 V rms, RL = 100 k)
Low Charge Injection: 35 pC typ
High OFF Isolation: 100 dB typ (RL = 10 k @ 1 kHz)
Low Crosstalk: 94 dB typ (RL = 10 k @ 1 kHz)
Low ON Resistance: 28  typ
Low Supply Current: 900 A typ
Single or Dual Supply Operation: +11 V to +24 V or ±5.5 V to 612 V
Guaranteed Break-Before-Make
TTL and CMOS Compatible Logic Inputs
Low Cost-Per-Switch


Pinout

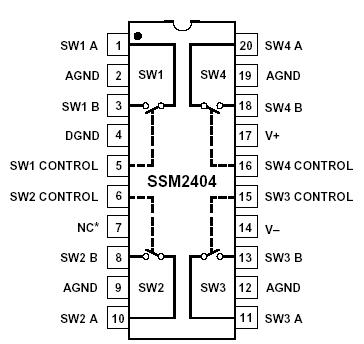

Connection Diagram


Specifications

Supply Voltage
    Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +27 V
      Dual Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±13.5 V
Analog Input Voltage (VA) . . . . . . . . . . . . . . . . . . . . . . . . . . VS
Logic Input Voltage (V INL/INH) . . . . . . . . . . . . . . . . . . . . . . VS
Maximum Current Through Any Switch . . . . . . . . . . . 20 mA
Operating Temperature Range . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . +150°C
Lead Temperature (Soldering, 60 sec) . . . . . . . . . . . . +300°C
Thermal Resistance1
   20-Pin Plastic DIP (P): JA = 74, JC = 32 . . . . . . . . . °C/W
   20-Pin SOIC (S): JA = 90, JC = 27 . . . . . . . . . . . . . . °C/W


Description

The SSM2404 integrates four SPST analog switches in a single 20-pin package. Developed specifically for high performance audio applications, distortion and noise are negligible over the full operating range of 20 Hz to 20 kHz. With very low charge injection of 35 pC, "clickless" audio switching is possible, even under the most demanding conditions.

Switch control is realized by conventional TTL or CMOS logic. Guaranteed "break-before-make" operation assures that all switches in a large system will open before any switch reaches the ON state.

Single or dual supply operation is possible. Additional features include 100 dB OFF isolation, 94 dB crosstalk and 28  ON resistance. Optional current-mode switching permits an extended signal-handling range. Although optimized for large load impedances, the SSM2404 maintains good audio performance even under low load impedance conditions.
