Product Details

Description

Application

Small package
Low on resistance : R_on = 0.4 Ω (max) (V_GS= −4 V)
: R_on= 0.6 Ω (max) (V_GS = −2.5 V)
Low gate threshold voltage

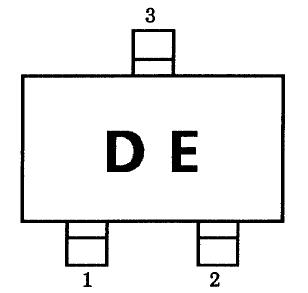

Pinout

Connection Diagram

Specifications

Characteristic		Symbol	Rating	Unit
Drain-Source voltage		V_DS	-30	V
Gate-Source voltage		V_GSS	±10	V
Drain current	DC	I_D	-700	mA
Drain current	Pulse	I_DP	-1400	mA
Drain power dissipation (Ta =25°C)		P_D	200	mW
Channel temperature		T_ch	150	°C
Storage temperature range		T_stg	-55 to 150	°C
