Product Details

Description



Application

Small package
Low on resistance : Ron = 200 mΩ (max) (VGS = 4 V)
                              : Ron = 250 mΩ (max) (VGS = 2.5 V)
Low gate threshold voltage: Vth = 0.6~1.1 V (VDS = 3 V, ID = 0.1 mA)


Pinout

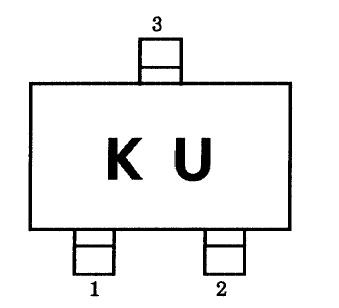

Connection Diagram


Specifications

Characteristic Symbol Rating Unit
Drain-Source voltage VDS 30 V
Gate-Source voltage VGSS ±10 V
Drain current DC ID 1.0 A
Pulse IDP 2.0
Drain power dissipation (Ta =25°C) PD 200 mW
Channel temperature Tch 150 °C
Storage temperature range Tstg -55 to 150 °C
