SST25VF512

Features: • Single 2.7-3.6V Read and Write Operations• Serial Interface Architecture SPI Compatible: Mode 0 and Mode 3• 20 MHz Max Clock Frequency• Superior Reliability Endurance: 100,000 Cycles (typical) Greater than 100 years Data Retention• Low Power Consumption...

product image

SST25VF512 Picture
See larger image
SeekIC No. : 004505203 Detail

SST25VF512: Features: • Single 2.7-3.6V Read and Write Operations• Serial Interface Architecture SPI Compatible: Mode 0 and Mode 3• 20 MHz Max Clock Frequency• Superior Reliability End...

SST25VF512 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SST25VF512
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 2.7-3.6V Read and Write Operations
• Serial Interface Architecture
   SPI Compatible: Mode 0 and Mode 3
• 20 MHz Max Clock Frequency
• Superior Reliability
   Endurance: 100,000 Cycles (typical)
   Greater than 100 years Data Retention
• Low Power Consumption:
   Active Read Current: 7 mA (typical)
   Standby Current: 8 A (typical)
• Flexible Erase Capability
   Uniform 4 KByte sectors
   Uniform 32 KByte overlay blocks
• Fast Erase and Byte-Program:
   Chip-Erase Time: 70 ms (typical)
   Sector- or Block-Erase Time: 18 ms (typical)
   Byte-Program Time: 14 s (typical)
• Auto Address Increment (AAI) Programming
   Decrease total chip programming time over Byte-Program operations
• End-of-Write Detection
   Software Status
• Hold Pin (HOLD#)
   Suspends a serial sequence to the memory without deselecting the device
• Write Protection (WP#)
   Enables/Disables the Lock-Down function of the status register
• Software Write Protection
   Write protection through Block-Protection bits in status register
• Packages Available
   8-lead SOIC (4.9mm x 6mm)
   8-contact WSON

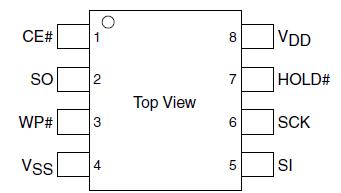

Pinout

Connection Diagram


Description

SST's serial flash family features a four-wire, SPI-compatible interface that allows for a low pin-count package occupying less board space and ultimately lowering total system costs. SST25VF512 SPI serial flash memory is manufactured with SST's proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

The SST25VF512 device significantly improves performance, while lowering power consumption. The total energy consumed is a function of the applied voltage, current, and time of application. Since for any given voltage range, the SuperFlash technology uses less current to program and has a shorter erase time, the total energy consumed during any Erase or Program operation is less than alternative flash memory technologies. The SST25VF512 device operates with a single 2.7-3.6V power supply.

The SST25VF512 device is offered in both 8-lead SOIC and 8-contact WSON packages. See Figure 1 for the pin assignments.
