SST45LF010

Features: • Single 3.0-3.6V Read and Write Operations• Serial Interface Architecture• Byte Serial Read with Single Command• Superior Reliability Endurance: 100,000 Cycles (typical) Greater than 100 years Data Retention• Low Power Consumption Active Current: 10 mA (typ...

product image

SST45LF010 Picture
See larger image
SeekIC No. : 004505358 Detail

SST45LF010: Features: • Single 3.0-3.6V Read and Write Operations• Serial Interface Architecture• Byte Serial Read with Single Command• Superior Reliability Endurance: 100,000 Cycles (ty...

SST45LF010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SST45LF010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3.0-3.6V Read and Write Operations
• Serial Interface Architecture
• Byte Serial Read with Single Command
• Superior Reliability
Endurance: 100,000 Cycles (typical)
Greater than 100 years Data Retention
• Low Power Consumption
Active Current: 10 mA (typical)
Standby Current: 10 µA (typical)
• Sector or Chip-Erase Capability
Uniform 4 KByte sectors
• Fast Erase and Byte-Program
Chip-Erase Time: 70 ms (typical)
Sector-Erase Time: 18 ms (typical)
Byte-Program Time: 14 µs (typical)
• Automatic Write Timing
Internal VPP Generation
• End-of-Write Detection
Software Status
• 10 MHz Max Clock Frequency
• Hardware Reset Pin (RST#)
Resets the device to Standby Mode
• CMOS I/O Compatibility
• Hardware Data Protection (WP#)
Protects and unprotects the device from Write
operation
• Packages Available
8-lead SOIC (4.9mm x 6mm)
8-contact WSON


Pinout

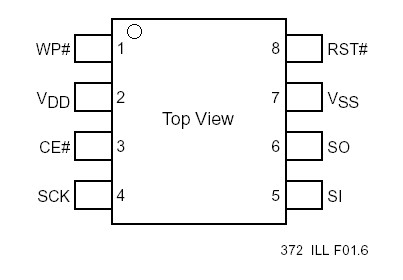

Connection Diagram


Specifications

Temperature Under Bias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55°C to +125°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
D. C. Voltage on Any Pin to Ground Potential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to VDD+0.5V
Transient Voltage (<20 ns) on Any Pin to Ground Potential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -1.0V to VDD+1.0V
Package Power Dissipation Capability (Ta = 25°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0W
Surface Mount Lead Soldering Temperature (3 Seconds) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240°C
Output Short Circuit Current1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
1. Outputs shorted for no more than one second. No more than one output shorted at a time.


Description

The SST45LF010 is a 1 Mbit serial flash memory manufactured with SST's proprietary, high performance CMOS SuperFlash technology. The 1 Mbit of memory is organized as 32 sectors of 4096 Bytes. The flash memory uses a 3- wire serial interface and a chip enable to select and sequentially access its data. The serial interface consists of; serial data input (SI), serial data output (SO), serial clock (SCK), and chip enable (CE#). A write protect (WP#) inhibits the entire memory from write operation and a hardware reset pin (RST#) resets the device to standby mode.

The SST45LF010 device is offered in both 8-lead SOIC and 8-contact WSON packages. See Figure 1 for the pinouts.
