Product Details

Description



Features:

·Low voltage operation ( VDD min = VS1 min = VS2 min = 1.5V )
·Low saturation voltage ( Upper transistor + low transistor residual voltage; 0.3V typ. at 400mA; 0.6V typ. at 750mA)
·Parallel connection ( two-channel driver: Upper transistor + low transistor residual ; 0.4V typ. at 800mA )
·Separate control logic power supply and motor driver power supply
·High output sinking and driving capability
·Thin, highly reliable package (SOP-14)


Pinout

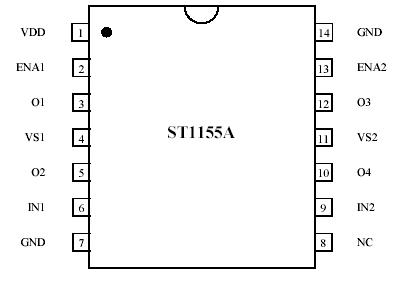

Connection Diagram


Specifications

Characteristic
Symbol
Rating
Unit
Supply Voltage
VDD
5.5
V
VS
3.5
V
Input Voltage
VIN
VDD+0.4
V
IO Peak Current
IOPeak
3
A
Power Dissipation
PD
800
mW
Operating Temperature Range
TOPR
-40 ~ 125
Storage Temperature Range
TSTG
-65 ~ 150
